Unleash the power of seamless connectivity with our latest innovation – the CHA UNUN/BALUN series. Designed to elevate your antenna experience to unprecedented heights, these high-power marvels are set to redefine your communication journey.

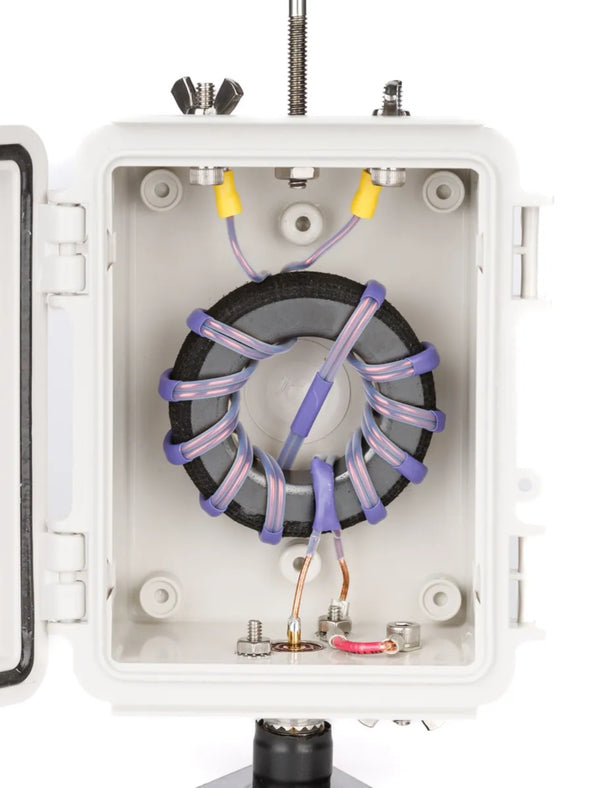

THE ANTENNA WIRE CONNECTS TO EITHER - BOTH THUMB SCREWS (BALUN) OR SINGLE THUMB SCREW (UNUN) AT THE TOP OF THE ENCLOSURE AND ALL GROUNDS ARE CONNECTED TO THE BOTTOM SINGLE THUMB SCREW OF THE ENCLOSURE.

Seamless Compatibility:

With a comprehensive range of ratios including 49:1, 9:1, 6:1, 5:1, 4:1, and 1:1, our UNUN/BALUN series ensures compatibility with a wide array of antennas and systems. Whether you're a seasoned ham radio enthusiast, an avid outdoor adventurer, or an emergency responder, Chameleon Antenna has you covered.

Peak Performance:

Experience unparalleled performance as the NEW CHA UNUN/BALUN optimizes impedance transformation, enhances signal efficiency, and minimizes unwanted interference. Elevate your signal strength and clarity, allowing you to stay connected even in challenging environments.

Cutting-Edge Engineering:

Crafted with precision and innovation, our UNUN/BALUN series showcases Chameleon Antenna's commitment to excellence. These units are built to withstand the elements, ensuring reliability in the harshest conditions. Whether it's a scorching desert or a frigid mountaintop, our UNUN/BALUNs are your trusty companions.

SPECIFICATIONS

1:1 ATU Current BALUN

Frequency: 1 – 100Mhz

Input Impedance: 50Ω

Output Impedance: 50Ω

Power Handling: SSB=1KW CW=700W

Temperature Range: -40°C to +100°C

Core Type: FT240-43 by Fair-rite® Co.

Wire type: Enamel copper wire 1.6 mm (AWG 14)

Insulation type: PTFE

4:1 UNUN for Multiband Verticals

Frequency: 1 – 54Mhz

Input Impedance: 50Ω

Output Impedance: 200Ω

Power Handling: SSB=1KW CW=700W

Temperature Range: -40°C to +100°C

Core Type: FT240-43 by Fair-rite® Co.

Wire type: Enamel copper wire 1.6 mm (AWG 14)

Insulation type: PTFE

5:1 UNUN

Frequency: 1.8 – 30Mhz

Input Impedance: 50Ω

Output Impedance: 250Ω

Power Handling: SSB=200W CW=100W DIGITAL=100W

Temperature Range: -40°C to +100°C

Wire type: Copper wire 1.6 mm (AWG 16)

Insulation type: PTFE

6:1 UNUN RF Transformer

Frequency: 1.5 - 70MHz

Input Impedance: 50Ω

Output Impedance: 300Ω

Power Handling: SSB=1KW CW=700W

Temperature Range: -40°C to +100°C

Core Type: FT240-43 by Fair-rite® Co.

Wire type: Enamel copper wire 1.6 mm (AWG 14)

Insulation type: PTFE

9:1 UNUN RF Transformer

Frequency: 1.5 - 30MHz

Input Impedance: 50Ω

Output Impedance: 450Ω

Power Handling: SSB=1KW CW=700W

Temperature Range: -40°C to +100°C

Core Type : FT240-43 by Fair-rite® Co.

Wire type: Enamel copper wire 1.6 mm (AWG 14)

Insulation type: PTFE

49:1 UNUN RF Transformer

Frequency: 3.5MHz – 50MHz

Input Impedance: 50Ω

Output Impedance: 2450Ω

Power Handling: SSB=500W CW=250W

Core Type: FT240-43 by Fair-rite® Co.

Wire type: Enamel copper wire 1.6 mm (AWG 14)

Insulation type: PTFE
