CHA HPD (High Performance Dipole) wire set for CHA TD 2.0

RELATED PRODUCT: Tactical Dipole (TD) 2.0

Employing the optional High-Performance Dipole (HPD) Wire Kit as either antenna or counterpoise wires will also increase the gain, see figure gain graph above. Based upon the antenna model, simply using the High-Performance Dipole (HPD) Wire Kit in place of the standard counterpoise wires increases the gain below 14 MHz an average of 2.6 dB, while still making the antenna easy to deploy, since the counterpose wires may be ran in any convenient direction and do not have to be straight.

All variations of the Sloping “V” / Inverted “V” antenna can also be installed without the terminated resistors. This can improve the performance of the antenna but may require the use of a tuner on most bands.

Modular Antenna Configurations

The two primary antenna configurations described in the User Guide are the Terminated Sloping “V” / Inverted “V” and the Terminated Sloping Wire configurations, but the Tactical Dipole (TD) 2.0 is a modularly designed wire antenna system. This modular design enables the Tactical Dipole (TD) 2.0 to be configured into more than a dozen and a half operationally useful antenna configurations using existing components and the optional High-Performance Dipole (HPD) Wire Kit. The Tactical Dipole Modular Antenna Configurations table above shows other modular antenna configurations and variations not previously described. Refer to the installation procedures for the Sloping “V” / Inverted “V” or Sloping Wire Antennas for Tactical Dipole (TD) 2.0 component connection details.

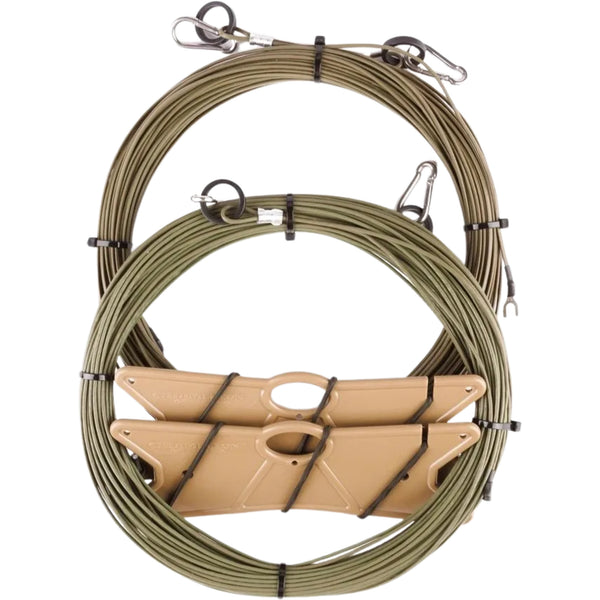

The antenna system consists of:

2 X 108' Tinned Copper KEVLAR PTFE (Teflon) (-70°C to 150°C) wires
