One Loop, Nine Bands: Meet the Delta Loop Operator System

A Delta Loop can be simple enough to build in an afternoon—and different enough from a straight wire to teach you something important about antenna geometry.

It is one continuous conductor arranged as a triangle. That sounds straightforward. The interesting part begins when you decide whether to install that triangle vertically or horizontally, where to place the feed point, how high to support it, and what job the antenna must do.

Those choices change the required space, the mechanical difficulty, the interaction with the ground, and the directions in which the modeled pattern offers radiation opportunities. They also decide whether the antenna is practical for your park, summit, backyard, emergency site, or base station.

That is why we built the Chameleon Delta Loop Operator System: a connected set of beginner-readable guidance, planning tools, printable records, and reviewed NEC-2 educational patterns. It does not hand you one magic length and pretend every installation will behave the same. It helps you understand the decisions before you cut wire.

Open the Delta Loop Operator Handbook →

Why every wire-antenna operator should try a loop

A Delta Loop is not automatically better than a dipole, an end-fed wire, or a vertical. It is valuable because it gives the operator another complete geometry to work with.

The conductor closes back on itself. There is no open wire end, and the loop itself supplies both sides of the feed-point current path. That does not eliminate the need to control the feed line, use the correct matching arrangement, or verify the installation. It does mean that the antenna begins as a closed balanced structure rather than a single-ended wire depending on a separate return conductor.

A practical Delta Loop can offer:

• A closed-wire geometry: useful when you want to explore a balanced loop rather than another open-ended radiator.
• Flexible support choices: one high point and two lower corners can work for a vertical triangle; three supports can create a horizontal loop.
• A real lesson in pattern control: the same wire length can behave very differently when the loop plane, height, feed point, and frequency change.
• Potential multiband use: a loop designed around one band can present usable opportunities on additional bands when paired with the appropriate documented matching system and tuner. The exact result remains installation-specific.
• A repeatable experiment: build it, document it, measure it, operate it, then change one variable at a time.

The reason to try a Delta Loop is not that it wins every comparison. It is that it gives you a versatile, understandable wire system whose geometry you can deliberately adapt to the mission.

Vertical and horizontal are two different field decisions

Vertical Delta Loop

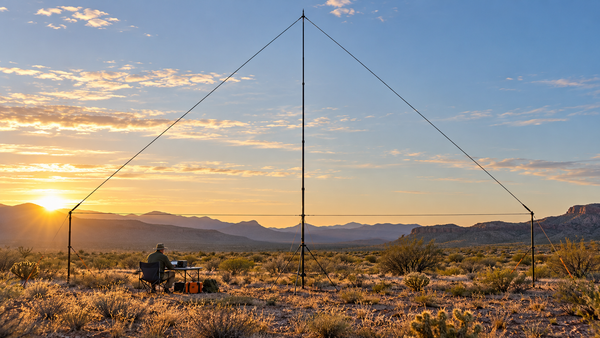

A vertical Delta Loop places the triangle in an upright plane. A common field arrangement uses one high apex and two lower corners. That can make the support problem easier when a tall mast or tree is available but three elevated supports are not.

It is often attractive when the mission favors lower-angle opportunities, when the available footprint is long but not broad, or when a portable operator can safely establish one strong high point. The plane of the loop and the chosen feed position matter. Rotating the installation or moving the feed point is not merely cosmetic.

Advantages: one principal high support may be enough; the footprint can be practical in a long campsite or field edge; the geometry can support useful directional planning; and the lower corners can be easier to inspect and adjust.

Tradeoffs: the lower conductor may be close to people, animals, vehicles, and lossy ground; the structure has a broad wind profile; the apex and corner loads need real mechanical planning; and a poorly routed feed line can become part of the RF system.

Horizontal Delta Loop

A horizontal Delta Loop places the triangle roughly parallel to the ground. It usually needs three separated supports and enough overhead clearance to keep the entire conductor safe. Height becomes a major electrical variable, especially on the lower bands.

It can be a strong option for operators seeking regional coverage opportunities, an elevated closed loop, or a permanent installation with three suitable supports. On some bands and at some heights, the modeled energy may favor higher radiation angles. On higher-frequency operation of the same physical loop, the pattern can divide into several lobes and nulls.

Advantages: the conductor can be kept overhead; the loop can use the available area above a property or operating site; and its height can be selected around the desired regional or longer-path opportunity.

Tradeoffs: it generally needs three supports; installation and maintenance may be harder; nearby branches, roofs, gutters, and wiring can couple to the loop; and a low horizontal loop is not a universal DX solution.

Neither orientation is the winner in every situation. Choose the one the site can support safely and repeatably, then decide whether its likely radiation opportunities fit the stations you need to reach.

Bob KD4BMG's 150-foot loop: one build, nine modeled bands

Bob KD4BMG showed what a resourceful operator can do with a large wire loop in his Delta Loop field video. We used his documented geometry as a worked educational example—not as a factory product configuration and not as a promise that another installation will produce identical results.

The locked example uses a 150-foot perimeter: a 62-foot base and two 44-foot sides, with an approximately 34-foot apex. The educational model places the base about 2.78 feet above the modeled ground, feeds the center of one lower sloping side, uses 20 AWG PTFE-insulated wire, and records the documented 5:1 matching unit.

We modeled that exact geometry at nine representative amateur-band frequencies:

• 80 meters — 3.750 MHz
• 60 meters — 5.357 MHz
• 40 meters — 7.150 MHz
• 30 meters — 10.125 MHz
• 20 meters — 14.200 MHz
• 17 meters — 18.118 MHz
• 15 meters — 21.225 MHz
• 12 meters — 24.940 MHz
• 10 meters — 28.500 MHz

At 3.750 MHz, the normalized 2D views describe the shape of this one controlled NEC-2 model. They do not predict the SWR, gain, efficiency, range, or safety of your installation.

The progression is the lesson. As the operating frequency rises while the physical loop stays the same size, the loop becomes electrically larger. The modeled pattern does not remain one smooth shape. Lobes and nulls develop, useful directions change, and small installation differences can matter more.

The 7.150 MHz 3D view makes the spatial pattern easier to understand. It is a normalized shape, not an installed-performance certificate.

By 14.200 MHz, the same 150-foot loop is electrically much larger. The added lobes can create useful opportunities—but also deeper nulls that an operator needs to understand.

At 28.500 MHz, the multi-lobed 3D shape is a reminder that “multiband” does not mean “the same coverage pattern on every band.”

Who should consider a Delta Loop?

POTA and SOTA operators

A Delta Loop is worth considering when the activation site offers a safe high point, enough wire clearance, and more setup time than a quick vertical requires. A vertical triangle can reduce the number of elevated supports, but a large low-band loop still has a substantial footprint and wind load.

For a short activation, poor weather, crowded park, or treeless summit, forcing a large loop into the site is the wrong move. Carry a practiced fallback antenna. The best field antenna is the one you can deploy safely, verify quickly, and recover before conditions change.

HOA and restricted-property operators

A loop can use boundaries that a straight wire cannot: a triangular path between a mast, roofline, tree, or removable corner supports. It can also become a discreet temporary system when permanent structures are not allowed.

The limitation is real estate. If the conductor must run beside stucco mesh, gutters, utility wiring, or a metal fence, the installed system may depart sharply from the clean model. A smaller loop is not automatically an equivalent loop, and folding surplus wire back on itself is not a controlled design method. Measure the actual available geometry before choosing the antenna.

EMCOMM, preparedness, and first-response teams

A Delta Loop can be valuable when a team has a known operating site, trained installers, suitable supports, and enough time to erect and inspect it. A horizontal loop may support regional coverage planning; a vertical loop may support different path opportunities from the same general site.

But an emergency is not the time to discover that the rope is too short, the feed point is inaccessible, or the loop crosses a vehicle route. Train with the complete station. Record the exact wire lengths, support locations, feed-line route, matching equipment, analyzer result, and intended coverage role. Maintain a faster fallback for weather, darkness, damaged supports, or reduced staffing.

Government and military users

The useful question is not whether a Delta Loop is “tactical.” It is whether the installation fits the communications plan, time budget, signature constraints, transport burden, available supports, trained crew, and required fallback.

A wire loop can be field-repairable and can provide a deliberately different geometry from a vertical whip. It can also consume time, space, rope, and attention. Use controlled configuration records and site-specific validation. Do not treat a commercial matching component, a simulation, or one successful contact as certification for an operational requirement.

Portable and base-station operators

Portable operators gain an antenna experiment that can be adapted to the terrain. Base-station operators gain the ability to optimize height, orientation, maintenance access, and feed-line control more carefully. Both gain the same thing: a system whose geometry can be documented and improved over time.

When not to deploy the loop

Use another antenna when:

• the site cannot maintain safe separation from power lines, people, animals, roads, or energized conductors;
• the supports cannot tolerate the expected wire tension, wind, ice, or changing weather;
• the footprint forces the wire or feed line into an uncontrolled path beside metal or wiring;
• you do not have enough light, time, crew, or access to inspect the complete installation;
• the required communication path calls for a different band or radiation-angle opportunity;
• you have not practiced the deployment and the mission cannot tolerate experimentation.

Saying “not at this site” is good field judgment. The Delta Loop is an option—not an obligation.

Everything in the new Delta Loop Operator System

The 87-page Operator Handbook explains the how and why: loop fundamentals, vertical versus horizontal installation, feed-point choices, site constraints, mission-specific decisions, SWR and band-coverage concepts, troubleshooting, safety, Bob's worked example, and field records.

Download the Delta Loop Operator Handbook PDF →

The Wire Antenna Workshop helps you plan a Delta Loop without confusing a calculated starting point with a finished antenna. Enter the target frequency and geometry, review practical dimensions, and print a build record for trimming, matching, and measured results.

Create a Delta Loop build record →

The Antenna Advisor starts with the mission and site. It helps you decide whether a Delta Loop fits the available supports, footprint, setup time, weather, and communication objective—then hands the decision into the Workshop.

Check whether a Delta Loop fits your site →

The Pattern Library includes Bob's nine-band example in reviewed 2D and interactive 3D form, with configuration metadata and evidence boundaries kept beside every pattern.

Explore Bob's nine-band Pattern Library →

Operators who want to audit or reproduce the educational model can also download the NEC-2 evidence bundle, including model cards, generated assets, metadata, and checksums.

Download the NEC-2 evidence bundle

Your first Delta Loop should be an experiment you can repeat

1. Define the job. Choose the stations, distance, band, setup time, and site you actually need to support.
2. Measure the site. Record support height, spacing, conductor clearance, nearby metal, and the feed-line route.
3. Choose the orientation. Select vertical or horizontal because it fits the mission and supports—not because one is universally better.
4. Build from a recorded starting point. Keep the wire dimensions, feed position, matching arrangement, and support geometry together.
5. Inspect and measure at low power. Do not tune through an unstable or severe fault.
6. Operate and write down what happened. Record the frequency, SWR reference point, tuner state, weather, surroundings, and useful contacts.
7. Change one variable. A controlled adjustment teaches you more than rebuilding the whole station between tests.

The goal is not to copy Bob's property or make your plot look exactly like the model. The goal is to understand what Bob's example demonstrates, build a loop that fits your own site, and preserve enough information to improve it intelligently.

Start with the complete Delta Loop guide →

Model and safety boundary: the displayed patterns are normalized educational results generated with a controlled NEC-2/PyNEC model of Bob KD4BMG's documented 150-foot geometry. They are not NEC-4.2 results, measured field data, a Chameleon product configuration, or a guarantee of installed SWR, efficiency, gain, coverage, range, or safety. Your ground, height, wire, insulation, feed system, surroundings, construction, and weather can materially change the result. Follow applicable electrical, structural, RF-exposure, site, and safe-clearance requirements.
