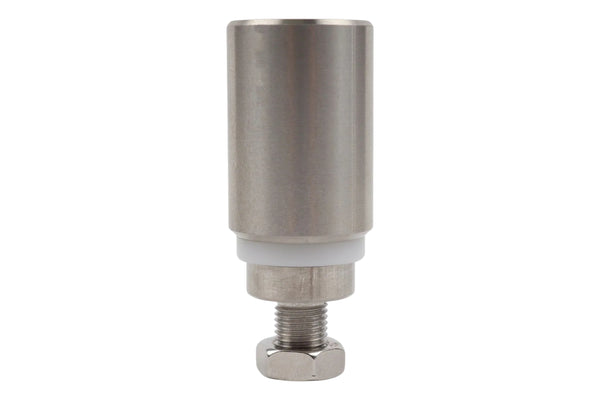

The CHA SS INSULATOR is a versatile insulator component designed for Chameleon Antenna systems. It is essential for setting up efficient antenna configurations, particularly with the CHA BV (Basic Vertical) and other MPAS (Modular Portable Antenna System) setups. This component improves antenna efficiency by electrically isolating sections, helping prevent unwanted signal loss, and ensuring consistent performance across HF bands.
The operator gets a specific way to complete, adapt, or maintain the intended product without confusing physical fit with full RF, power, environmental, or structural compatibility.
Quick product reference
Key Specifications
- Product type
- Accessories & Components
- Primary role
- A replacement, service, interface, or modular accessory for a documented product or system.
- Color
- silver
- Selection rule
- Confirm product family, revision, interface, size, and quantity
- Compatibility
- Verify electrical, power, and structural requirements where applicable
- Component role
- Replacement
- service
- interface
- or modular part for a documented product or system
- Selection checks
- Confirm product family, revision, interface, material, size, and quantity
- Included quantity
- Determined by the selected product or pack variant
Operator decision support
Plan the complete setup
See what this product is best suited for, what the documented setup needs, and the boundaries to confirm before deployment.
- Best for
Field failures rarely wait for a convenient repair bench, so the right documented component can be the difference between improvising and operating.
- What else you need
Confirm product family, revision, interface, size, and quantity
- Compatible with
Verify electrical, power, and structural requirements where applicable
What an operator can do
- Confirm the exact product, revision, interface, size, quantity, and position the component is intended to serve.
- Install it according to the completed product or system guide.
- Treat physical fit as only one part of compatibility; verify electrical, power, and structural requirements where applicable.
Complete product details
The CHA SS INSULATOR is a versatile insulator component designed for Chameleon Antenna systems. It is essential for setting up efficient antenna configurations, particularly with the CHA BV (Basic Vertical) and other MPAS (Modular Portable Antenna System) setups. This component improves antenna efficiency by electrically isolating sections, helping prevent unwanted signal loss, and ensuring consistent performance across HF bands.
Key Features and Functionality of the CHA SS INSULATOR
Electrical Isolation:
- The CHA SS INSULATOR creates a necessary break between conductive sections of the antenna, ensuring that the desired parts of the antenna resonate without interference from adjacent metal components. This isolation is critical in maintaining the performance of antennas like the CHA BV across multiple bands.
Enhanced SWR Tuning and Stability:
- By preventing signal bleed or loss between different antenna sections, the SS INSULATOR aids in achieving a lower and more stable SWR across various HF bands. It enables the CHA BV to maintain optimal performance, especially in challenging environments where grounding and nearby objects may impact signal clarity.
Compatibility with MPAS Components:
- This insulator is designed to fit seamlessly with other Chameleon Antenna parts, including the CHA BLANK, CHA SINGLE-EXT, and compatible whips like the SS58, SS17, and SS25. It can be used to separate sections when adjusting antenna length and structure for specific frequency bands, allowing operators to fine-tune configurations for better results.
Rugged and Weather-Resistant Construction:
- Built to withstand outdoor conditions, the CHA SS INSULATOR is durable and weather-resistant, ideal for field deployments and rough environments. Its robust construction allows it to endure prolonged exposure to the elements, maintaining reliable isolation even in humid, wet, or dusty settings.
Lightweight and Portable:
- As with other Chameleon Antenna components, the CHA SS INSULATOR is compact and lightweight, making it easy to carry and assemble in the field. Its design complements the portability of the CHA BV system, facilitating quick setups and breakdowns.
Operational Benefits
Versatility in Antenna Configurations:
- The CHA SS INSULATOR enables more flexible antenna designs by providing isolated sections, which is essential for certain resonant setups. For example, it allows operators to extend or adjust the antenna length with CHA SINGLE-EXT or other components without compromising isolation between sections.
Enhanced Band Performance:
- Isolation improves the resonance and efficiency of each part of the antenna, ensuring that specific bands are tuned correctly and without interference. The SS INSULATOR is particularly useful for operators who frequently switch between bands, as it maintains clear and stable signals across HF frequencies.
Example Configuration with CHA SS INSULATOR in CHA BV Setup
- Setup: Connect the CHA SS INSULATOR between the CHA SINGLE-EXT and the chosen whip (e.g., SS17 or SS25) to achieve isolation for optimized performance on the desired HF band.
- Result: This setup helps maintain a balanced and isolated antenna structure, ideal for achieving optimal SWR on lower frequency bands (e.g., 40 and 30 meters) and preventing cross-band interference.
- Use in the Field: Ideal for portable or emergency operations where high-performance, multi-band capability is required, and rapid deployment is necessary.
Technical Specifications
- Material: Weather-resistant and rugged construction for durability in field conditions.
- Connector Type: Compatible with 3/8" x 24 threaded components.
- Weight: Lightweight to maintain portability within the MPAS system.
- Operating Environment: Suitable for a wide range of outdoor conditions, including wet and dusty areas.
The CHA SS INSULATOR is a valuable addition to Chameleon Antenna’s product lineup, providing the essential isolation required for efficient multi-band operations. It ensures that operators can achieve reliable and consistent performance across various HF bands, especially in dynamic and challenging environments.
The CHA SS INSULATOR consists of:
1 X CHA SS-INSULATOR
