BLF-1240A KIT (12V, 40Ah LFP Battery)

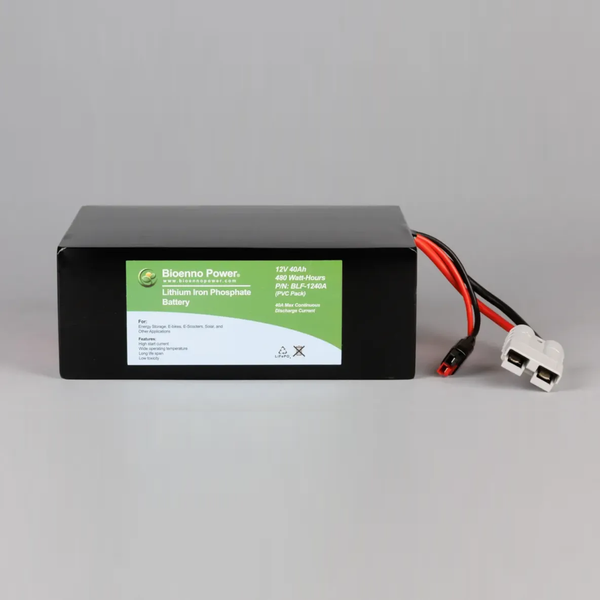

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1240A is a state-of-the-art 12V 40Ah battery. The BLF-1240A is a staple of Bioenno Power's high-power 12V battery line designed for more stationary applications and higher power consumption portable electronics requiring a higher capacity and greater power output battery while demanding a battery which can reliably provide excellent performance over an extended service life. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has an available 110VAC/220 VAC AC-to-DC charger, that provides 6A, with a Powerpole connector. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

Bioenno Power offers a 14.6VDC, 6A AC-to-DC Charger for LiFePO4 batteries, Model BPC-1506A, which uses Anderson Powerpoles for charging LiFePO4 batteries.  Please ensure that the LiFePO4 batteries include a PCM/BMS when using this particular charger.

Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, under-voltage (over-discharge), over voltage and short circuiting, and has integrated charging circuitry
Available 110VAC / 220 VAC Charger

Battery Specifications

• Voltage: 12V
• Capacity: 40Ah
• Case Type: PVC Pack
• Charge/Discharge Connector: Anderson Powerpole (PP45 / SB50)
• Maximum Continuous Discharge Current: 40A
• Maximum Peak Discharge Current: 80A (5 sec)
• Max Power Delivered to Load @ 12V: 480 Watts (12V x 40A = 480 Watts)
• Dimensions:(L x W x H) 8.4 in. x 6.3 in. x 3.2 in. (213 mm x 159 mm x 80)
• Weight: 10.4 lbs. (4.7 kg.)


Compatible AC-to-DC Charger Specifications

• Input Voltage: 110VAC/120VAC
• Output Voltage: 14.6VDC
• Current: 6A
• Connector: Anderson Powerpole
• Model Number: BPC-1506A

The Battery Package Consists Of:

• 1 X BLF-1240A KIT (12V, 40Ah LFP Battery)
• 1 X BPC-1506A (4.6V, 6A AC-to-DC Charger for 12V LiFePO4 Batteries)
