LRT (Loop Remote Tuner) · Tuners & Matching
A tuning, matching, analysis, or remote-control device for a documented RF system.
Why operators make room for it
Know the match before the operating conditions make the decision for you
A promising antenna setup is still an unknown until the operator can measure it and bring the system within a safe operating range.

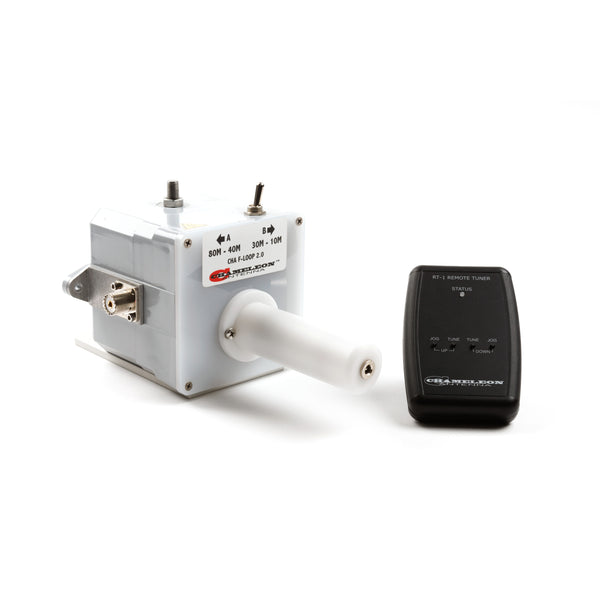

That is where CHA LRT (Loop Remote Tuner) enters the kit. The Loop Remote Tuner allows for remote tuning of the F-LOOP 2.0 and 3.0 magnetic loop antennas. This permits the antenna to be mounted away from the operating position, such as on a balcony or deck, and enables precise tuning of the loop. The LRT replaces the manual tuning knob with a motor housing and is controlled by a wired battery powered control box featuring fast and slow tuning buttons.
For the operator, the value is confidence: a measurable, repeatable path from antenna assembly to a verified match within the device and system limits.
Quick product reference
Key Specifications
- Product type
- Tuners & Matching
- Primary role
- A tuning, matching, analysis, or remote-control device for a documented RF system.
- Available style
- CHA LRT (Loop Remote Tuner) 2.0
- CHA LRT (Loop Remote Tuner) 3.0
- Frequency
- One Step/Increment (“<” or “>”), approximately 12 KHz at 15 MHz
- Power
- 9V DC internal replaceable battery
- Remote Operation
- Maximum of 20 ft. from operating position
- Dimensions
- Remote Tuner Unit: 4 5/8 in. x 3 1/8 in. x 1 in. (H x W x D). Motor Assembly: projects 4 1/2 in. from Tuning Unit, 1 3/8 in. diameter
- Operating method
- Follow the device guide and begin adjustment at low power
- System requirement
- Match RF, control, power, and grounding interfaces
Operator decision support
Plan the complete setup
See what this product is best suited for, what the documented setup needs, and the boundaries to confirm before deployment.
- Best for
A promising antenna setup is still an unknown until the operator can measure it and bring the system within a safe operating range.
- What’s included
- Remote Tuning Unit
- Motor Assembly
- RTU Cable
- Aluminum Bracket
- Long Machine Screws
- Short Machine Screws
- Allen Wrench
- What else you need
Tune or analyze at low power first, then confirm the result across the intended operating range.
- Compatible with
CHA F-LOOP 3.0 only
- Limitations
The CHA LRT operates only with the CHA F-LOOP 3.0
What an operator can do
- Connect the device according to its input, output, power, grounding, and control requirements.
- Tune or analyze at low power first, then confirm the result across the intended operating range.
- Stay within the published voltage, current, RF-power, duty-cycle, and environmental limits.
Complete product details
ANTENNA NOT INCLUDED
The Loop Remote Tuner allows for remote tuning of the F-LOOP 2.0 and 3.0 magnetic loop antennas. This permits the antenna to be mounted away from the operating position, such as on a balcony or deck, and enables precise tuning of the loop. The LRT replaces the manual tuning knob with a motor housing and is controlled by a wired battery powered control box featuring fast and slow tuning buttons. Detailed instructions allow for easy installation and operation of the Loop Remote Tuner.
The LRT 2.0 fits the F-Loop 2.0 antenna, the LRT 3.0 fits the F-Loop 3.0 antenna.
