CAP HAT · Radiators & Extensions
A modular radiator, whip, or extension used inside a documented antenna configuration.
Why operators make room for it
Give a modular antenna the length its configuration calls for
A small change in radiator length can open a different configuration without forcing the operator to carry a completely separate antenna.
The CHA CAP HAT from Chameleon Antenna is an innovative accessory designed to improve the performance of vertical whip antennas. This capacitance hat enhances the antenna's efficiency and bandwidth, making it an essential addition for amateur radio operators seeking optimal performance in their setups.
Used in a documented configuration, the component gives the operator another practical build option while preserving the electrical, mechanical, and power limits of the complete system.
Quick product reference
Key Specifications
- Product type
- Radiators & Extensions
- Primary role
- A modular radiator, whip, or extension used inside a documented antenna configuration.
- Available style
- CHA CAP-HAT (HUB ONLY)
- CHA CAP-HAT
- Electrical role
- Determined by the part's documented position in the completed antenna
- Compatibility
- Physical fit alone does not prove RF or structural approval
- System position
- Install only in the electrical or mechanical position defined by the completed-system guide
- Interface rule
- Shared 3/8-24 fit does not by itself establish RF, power, or structural compatibility
- Required companions
- Base, loading, feedpoint, mount, support, and radial / counterpoise choices are configuration-specific
Operator decision support
Plan the complete setup
See what this product is best suited for, what the documented setup needs, and the boundaries to confirm before deployment.
- Best for
A small change in radiator length can open a different configuration without forcing the operator to carry a completely separate antenna.
- What else you need
Combine it with the specified base, loading, feedpoint, mount, support, and radial or counterpoise system.
- Compatible with
- The CHA CAP HAT is compatible with various vertical whip antennas, making it a flexible choice for many setups
- Physical fit alone does not prove RF or structural approval
- Shared 3/8-24 fit does not by itself establish RF, power, or structural compatibility
- Limitations
Shared 3/8-24 fit does not by itself establish RF, power, or structural compatibility
What an operator can do
- Use the part as an electrical radiator or mechanical riser only in the position documented by the completed-system guide.
- Combine it with the specified base, loading, feedpoint, mount, support, and radial or counterpoise system.
- Treat a shared thread as physical fit only; verify RF, power, and structural compatibility from an approved configuration.
Complete product details
CHA CAP HAT: Enhance Your Vertical Whip Antenna Performance
The CHA CAP HAT from Chameleon Antenna is an innovative accessory designed to improve the performance of vertical whip antennas. This capacitance hat enhances the antenna's efficiency and bandwidth, making it an essential addition for amateur radio operators seeking optimal performance in their setups.
How It Works:
The CHA CAP HAT functions by providing additional capacitance to the vertical whip, effectively lowering the resonant frequency of the antenna system. Here’s a detailed breakdown of its operation:
-
Increased Efficiency: The capacitance hat increases the surface area of the antenna system, which in turn enhances the radiation efficiency. This design allows the antenna to radiate more effectively, especially in low-band operations.
-
Lowering the Resonant Frequency: By adding capacitance to the vertical whip, the CHA CAP HAT helps to lower the resonant frequency. This adjustment enables the antenna to operate efficiently on lower HF bands without the need for extensive additional tuning.
-
Improved Bandwidth: The addition of the capacitance hat expands the bandwidth of the antenna, allowing for better performance across multiple frequencies. This is particularly beneficial for operators who switch between bands during their operations.
-
Easy Installation: The CHA CAP HAT is designed for straightforward installation on existing vertical whip antennas. Its lightweight and compact design ensure that it does not add significant weight or bulk, making it a practical enhancement for portable and fixed installations alike.
-
Versatile Compatibility: The CHA CAP HAT is compatible with various vertical whip antennas, making it a flexible choice for many setups. Whether you are using it for portable operations or as a permanent fixture in your station, it adapts to your needs.
Upgrade your vertical whip antenna with the CHA CAP HAT and experience improved performance, efficiency, and versatility. Perfect for amateur radio enthusiasts looking to optimize their antenna systems, this accessory is a must-have for anyone serious about their HF operations.
Order your CHA CAP HAT today and take your antenna performance to the next level!
- For use with ANY antenna with 3/8" x 24 threads.
- Installs between the CHA MIL 2.0 and CHA MIL EXT 2.0
- Base Station or Portable use ONLY, not recommended for mobile in motion use.
- HUB is made of anodized aluminum.
- 6061 Aluminum Rods
- 32" Diameter
- Ultra-Light
- Increase radiation and the performance of ANY vertical HF antenna.
CAP-HAT
1 x CAP-HAT HUB
6x SS Set Screw 8/32 x 1/4
3 X 6061 Alu. Rods

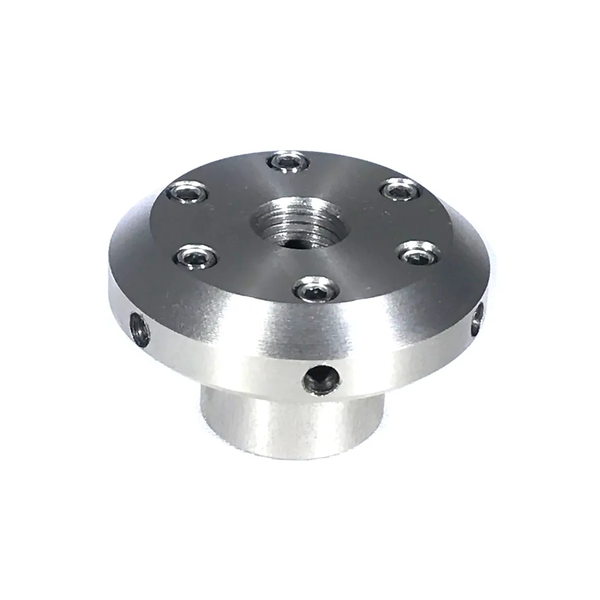

CAP-HAT(HUB ONLY)
1 x CAP-HAT HUB
6x SS Set Screw 8/32 x 1/4
