Included
- Matching unit
- 286 ft loop wire
- Guide-listed attachment hardware
Full-size horizontal HF loop
A 286 ft full-wave horizontal loop intended for four-support base or field installations.
Built for a real operating goal
Turn available property into a full-size, low-noise multiband HF loop
CHA SKYLOOP 2.0 is for stations with the room and support plan to use a complete 286-foot horizontal wire loop rather than compromise around a small footprint.
Suspended from four suitable supports, it creates a substantial 80-meter-class loop for base, camp, shortwave-listening, and emergency installations. Plan the site, height, feed line, choke, and weatherproofing as carefully as the antenna itself; this is a large installation, not a compact portable loop.
- Frequency3.5–54 MHz with tuner
- Loop perimeter286 ft; approximately 71.5 ft per side in the reference square
- Recommended height30–40 ft; lower deployment reduces performance
- Power500 W SSB, 250 W CW, 100 W high-duty-cycle modes
Picture the setup before you buy
See how this antenna works in the field

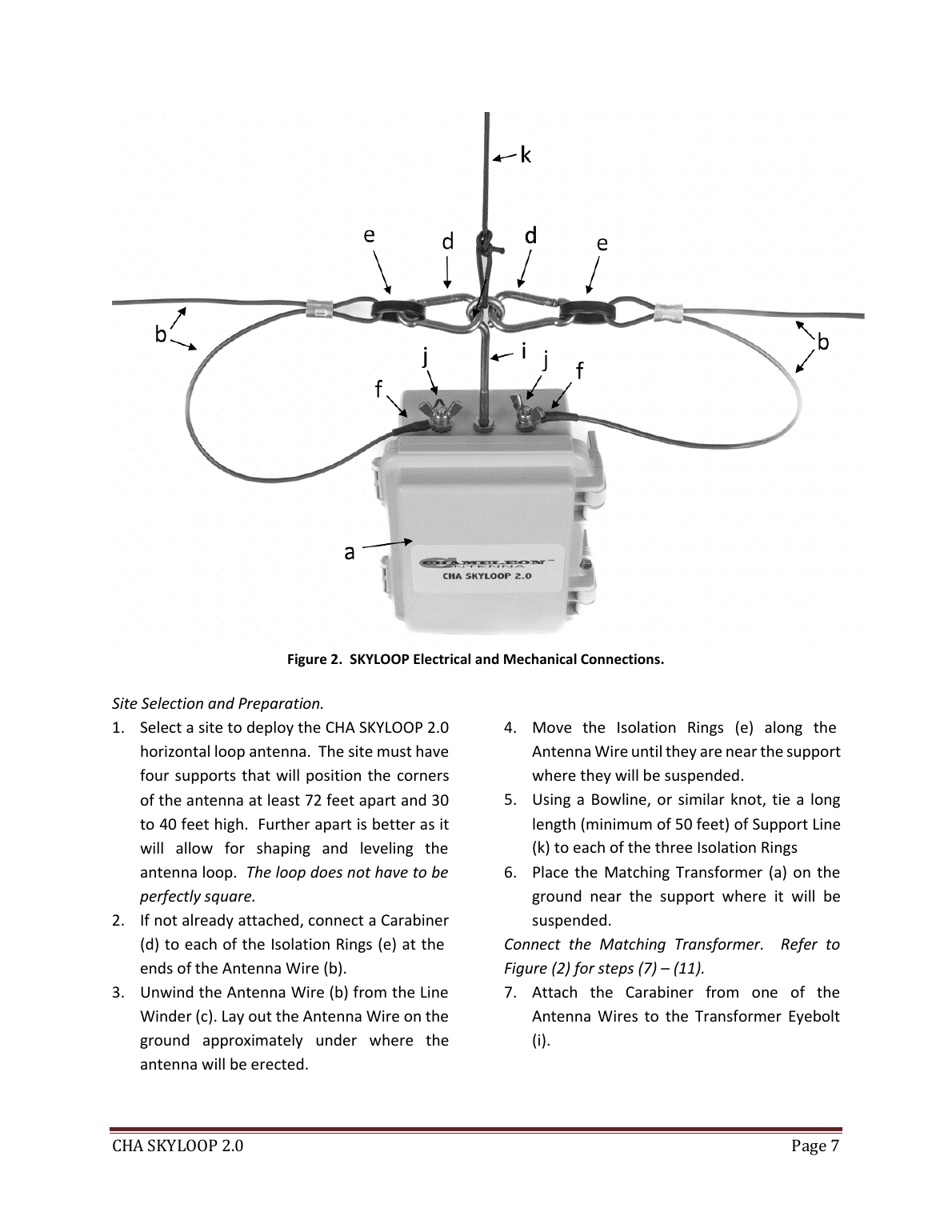

This official installation reference makes the antenna’s footprint, component order, and deployment style easier to understand at a glance.
Complete product reference
Key specifications
- Frequency
- 3.5–54 MHz with tuner
- Loop perimeter
- 286 ft; approximately 71.5 ft per side in the reference square
- Recommended height
- 30–40 ft; lower deployment reduces performance
- Power
- 500 W SSB, 250 W CW, 100 W high-duty-cycle modes
- RF connection
- SO-239
- Weight
- 3 lb
Know the complete setup before you transmit
Included equipment and documented configurations
Documented configurations
- Four-support horizontal loop
- Reference square with supports approximately 72 ft apart
- Site-shaped loop only within guide limits
Configuration boundary: This is not a compact balcony loop. Plan roughly 72 ft between four supports, at least 25 ft of coax, and a feed-point RFI choke or feed line with integrated choke.
Coverage & Pattern
See the reviewed 2D and interactive 3D patterns
Use only a model that matches this exact antenna configuration, band, height, ground, feed, and RF return.
