MORGAN SYSTEMS M-348 ROTOR LINE/CONTROL LINES · Accessories & Components
A replacement, service, interface, or modular accessory for a documented product or system.
Why operators make room for it
Keep a modular Chameleon build complete and field-ready
Field failures rarely wait for a convenient repair bench, so the right documented component can be the difference between improvising and operating.
That is where MORGAN SYSTEMS M-348 ROTOR LINE/CONTROL LINES enters the kit. Installation is a breeze and takes only a few moments. Each wire (up to 8 conductors on standard models and 12 conductors for the B models ) entering from rotating unit or switch box may be attached to any of the 8/12 insulated terminals on the side of the unit. The same wire then continues from that connected point onward to control box destination. Connect the metal case to a ground rod or system and you’re all set.
The operator gets a specific way to complete, adapt, or maintain the intended product without confusing physical fit with full RF, power, environmental, or structural compatibility.
Quick product reference
Key Specifications
- Product type
- Accessories & Components
- Primary role
- A replacement, service, interface, or modular accessory for a documented product or system.
- Available style
- M-348 (8 Conductors)
- M-348 (12 Conductors)
- Selection rule
- Confirm product family, revision, interface, size, and quantity
- Compatibility
- Verify electrical, power, and structural requirements where applicable
- Component role
- Replacement
- service
- interface
- or modular part for a documented product or system
- Selection checks
- Confirm product family, revision, interface, material, size, and quantity
- Included quantity
- Determined by the selected product or pack variant
Operator decision support
Plan the complete setup
See what this product is best suited for, what the documented setup needs, and the boundaries to confirm before deployment.
- Best for
Field failures rarely wait for a convenient repair bench, so the right documented component can be the difference between improvising and operating.
- What else you need
Confirm product family, revision, interface, size, and quantity
- Compatible with
Verify electrical, power, and structural requirements where applicable
What an operator can do
- Confirm the exact product, revision, interface, size, quantity, and position the component is intended to serve.
- Install it according to the completed product or system guide.
- Treat physical fit as only one part of compatibility; verify electrical, power, and structural requirements where applicable.
Complete product details
Unshielded control line conductors used to operate remote switching operations, antenna rotators, and home weather stations are easily charged to thousands of volts potential referenced to ground by overhead lightning discharges, frequently causing severe damage to equipment. In the RF transmitting environment, these same leads often couple into transmitted energy and re-radiate signals at ground level, resulting in interference to nearby equipment tuned to other services.
Models 347, 348 and 349 solve both problems in one convenient unit. Easy to install and virtually permanent, this suppressor shunts RF currents and voltages over 20V, 50V or 120V directly to facility ground terminal connection.

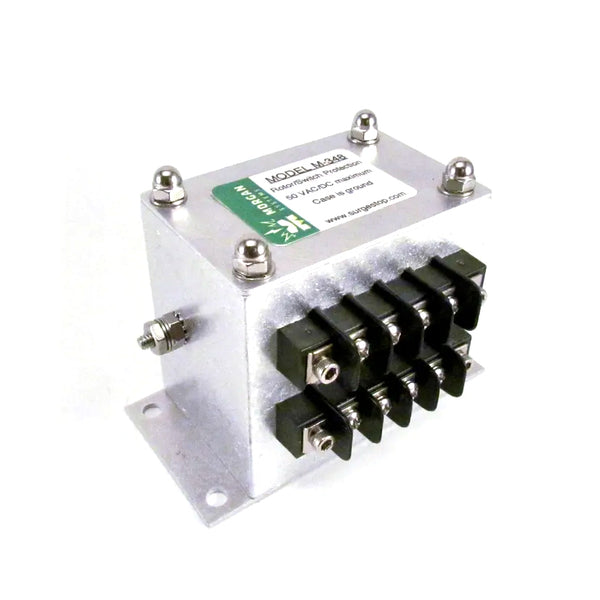

Installation is a breeze and takes only a few moments. Each wire (up to 8 conductors on standard models and 12 conductors for the B models) entering from rotating unit or switch box may be attached to any of the 8/12 insulated terminals on the side of the unit. The same wire then continues from that connected point onward to control box destination. Connect the metal case to a ground rod or system and you’re all set. May be used indoors or outdoors, designed for flat surface mounting, includes stainless steel grounding terminals. Mounting footprint is 4"x2", 3.125" tall.
Uses metal oxide varistor devices, AC or DC voltage rated, ceramic high-capacity RF bypassing components.
Comes with owners manual.
