CHA Puck Hub for the win!!
"Banana plugs on your radials are a game changer! No more messing with alligator clips and iffy attachments. Just plug in, unroll, and wa-la, you’re on the air!"
PUCK HUB · Mounting & Support
A base, clamp, adapter, bracket, stake, or mount for a documented portable installation.
Why operators make room for it
CHA PUCK HUB: create a stable support point for the intended antenna
The antenna can only stay useful if its base remains secure when leverage, wind, uneven ground, and hurried setup begin working against it. Enhance your antenna system's performance with the CHA PUCK HUB from Chameleon Antenna. Crafted from durable anodized aluminum, this robust hub allows for the seamless connection of up to six counterpoise wires using standard banana plugs, optimizing your antenna's efficiency and signal clarity. For the operator, a documented mount turns an improvised-looking site into a predictable installation with the correct adapter, fasteners, load limits, and guying.
Quick product reference
Key Specifications
- Product type
- Mounting & Support
- Primary role
- A base, clamp, adapter, bracket, stake, or mount for a documented portable installation.
- RF role
- Mechanical support; completed antenna determines electrical specifications
- Load rule
- Verify leverage, wind area, adapters, fasteners, and guying
- Structural role
- Base, clamp, bracket, stake, adapter, or mount in a documented load path
- Load planning
- Verify antenna weight, leverage, wind area, vehicle / terrain condition, and fastener strength
- Interface verification
- Confirm every thread, sleeve, adapter, clamp surface, and required fastener
- Guying requirement
- Determined by the attached antenna, support height, wind, and product guide
Operator decision support
Plan the complete setup
See what this product is best suited for, what the documented setup needs, and the boundaries to confirm before deployment.
- Best for
The antenna can only stay useful if its base remains secure when leverage, wind, uneven ground, and hurried setup begin working against it.
- What else you need
Confirm the antenna load, leverage, wind area, adapter, sleeve, fastener, and guying requirements.
- Compatible with
- Designed to integrate seamlessly with a variety of Chameleon Antenna products, including the CHA HYBRID MINI, CHA HYBRID MICRO, and CHA MCC, providing flexibility across different setups
- Confirm every thread, sleeve, adapter, clamp surface, and required fastener
- Limitations
Verify leverage, wind area, adapters, fasteners, and guying
What an operator can do
- Attach the mount to the approved surface, vehicle point, ground location, or support.
- Confirm the antenna load, leverage, wind area, adapter, sleeve, fastener, and guying requirements.
- Re-check stability and fastener tension after deployment and whenever weather or loading changes.
Compatibility: Physical fit does not by itself establish RF, power, environmental, or structural approval. Follow a documented completed-system configuration.
Complete product details

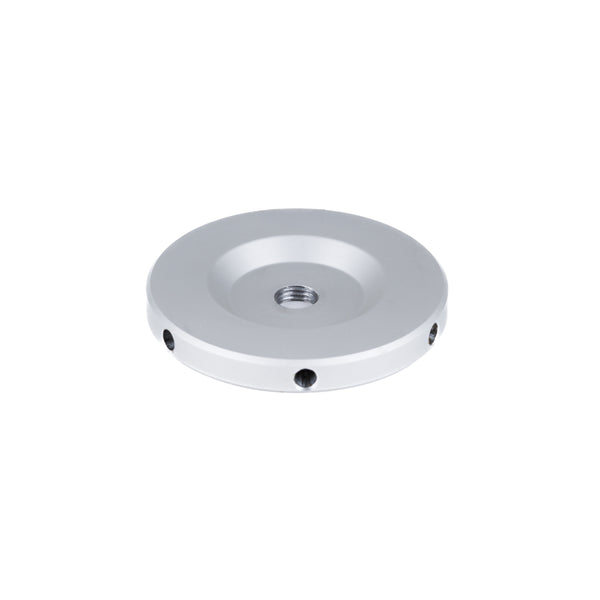

Enhance your antenna system's performance with the CHA PUCK HUB from Chameleon Antenna. Crafted from durable anodized aluminum, this robust hub allows for the seamless connection of up to six counterpoise wires using standard banana plugs, optimizing your antenna's efficiency and signal clarity.
Key Features:
-
Durable Construction: Made from high-quality anodized aluminum, the CHA PUCK HUB is built to withstand the rigors of both portable and permanent installations, ensuring long-lasting reliability.
-
Enhanced Performance: By facilitating the connection of multiple counterpoise wires, the hub improves grounding and overall antenna performance, leading to clearer signal transmission and reception.
-
Versatile Compatibility: Designed to integrate seamlessly with a variety of Chameleon Antenna products, including the CHA HYBRID MINI, CHA HYBRID MICRO, and CHA MCC, providing flexibility across different setups.
-
User-Friendly Design: The hub's design allows for quick and secure connections using banana plugs, simplifying the setup process and enabling rapid deployment in the field.
Whether you're a ham radio enthusiast, emergency communicator, or field operator, the CHA PUCK HUB is an essential accessory to elevate your antenna system's performance and adaptability. Experience the quality and innovation that Chameleon Antenna is renowned for, and ensure your communications are always clear and reliable.
