CHA PORTA-MOUNTS

Hitch Mount:

Powder coated aluminum “HITCH MOUNT”. The end that fits into the receiver is 15″ long and is a 2″x2″ square (outside measurement). The hole for the pin is 5/8″ in diameter. This is used primarily for RV camping or even tailgating in a parking lot! A hitch pin is not provided.

• The 3" GS (Ground Sleeve) is only used if you are putting the mast into the ground for the 20' and 25' masts. OPTIONAL
• The 2.5" GS (Ground Sleeve) is only used for the 15' mast to mount into the ground.  OPTIONAL

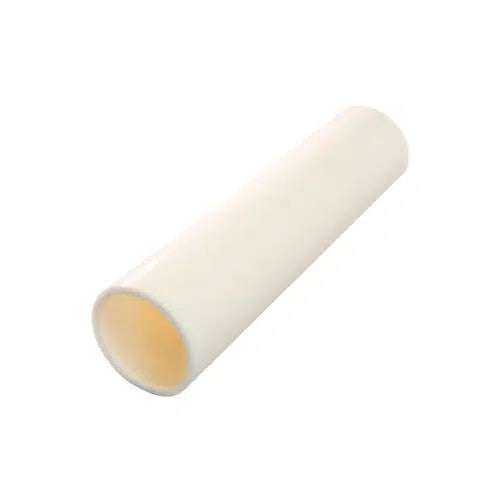

• The 2.5" RS (Reducer Sleeve) must be used with all mounts which are 3". OPTIONAL

Top Mount:

Powder coated aluminum “TOP MOUNT”. This can be attached to any horizontal surface. Concrete, wood, RV tongue. Attaching hardware is not included.  Don’t forget the Reducer Sleeve for Mounts if your pole is the 15′ (2.5″ base). The holes in the base are 7/16″ in diameter, and the centers of the holes are 6 7/8″ apart side to side and top to bottom.

• The 3" GS (Ground Sleeve) is only used if you are putting the mast into the ground for the 20' and 25' masts. OPTIONAL
• The 2.5" GS (Ground Sleeve) is only used for the 15' mast to mount into the ground.  OPTIONAL
• The 2.5" RS (Reducer Sleeve) must be used with all mounts which are 3". OPTIONAL

Wheel Mount:

Powder coated aluminum “WHEEL MOUNT”. This is primarily used for RV’s under the tire. You simply park one of your tires on it and set the brake, then drop your flagpole in the hole!  The wheel stand plate is 30″ long x 8″ wide.

• The 3" GS (Ground Sleeve) is only used if you are putting the mast into the ground for the 20' and 25' masts. OPTIONAL
• The 2.5" GS (Ground Sleeve) is only used for the 15' mast to mount into the ground.  OPTIONAL
• The 2.5" RS (Reducer Sleeve) must be used with all mounts which are 3". OPTIONAL


Mast Topper:

Anodized aluminum "MAST TOPPER" allows mounting antennas with a 3/8x24 stud mount such as our MPAS 2.0, MPAS Lite, TDL, RXL Pro or other similarly mounted antennas, or antennas that use U bolts or clamps.  See the Porta Mast user guide for antenna weight and wind loading limits.

Don’t forget the Reducer Sleeve for Mounts if your pole is a 15′ (2.5″ base). OPTIONAL

*** Excess of shipping funds will be refunded.***

For international Alaska and Hawaii please email us for a Shipping Quote.
