Sloper
Raise the far end 25-40 ft where one useful elevated support is available.
Lightweight 65-foot end-fed half-wave HF antenna
Full-size HF wire without full-size field baggage
Put 65 feet of useful HF radiator in a 1.1-pound field package.
CHA LEFS 4010 puts a full 65-foot HF radiator into a field package weighing about 1.1 pounds. Raise it as a sloper, inverted V, inverted L, horizontal wire, or low horizontal NVIS antenna when a permanent tower or full-size base installation is not practical.
The supplied EFHW wire covers 40, 20, 15, and 10 meters without changing the radiator. A suitable tuner expands practical operation, while optional LINK-D, LINK-D15, and WARC-D wire sets turn the same end assembly into documented resonant dipole configurations.
- Radiator65 ft lightweight PTFE wire
- Core bands40, 20, 15, and 10 m
- Power100 W SSB / 50 W CW / 25 W other
- WeightApproximately 1.1 lb

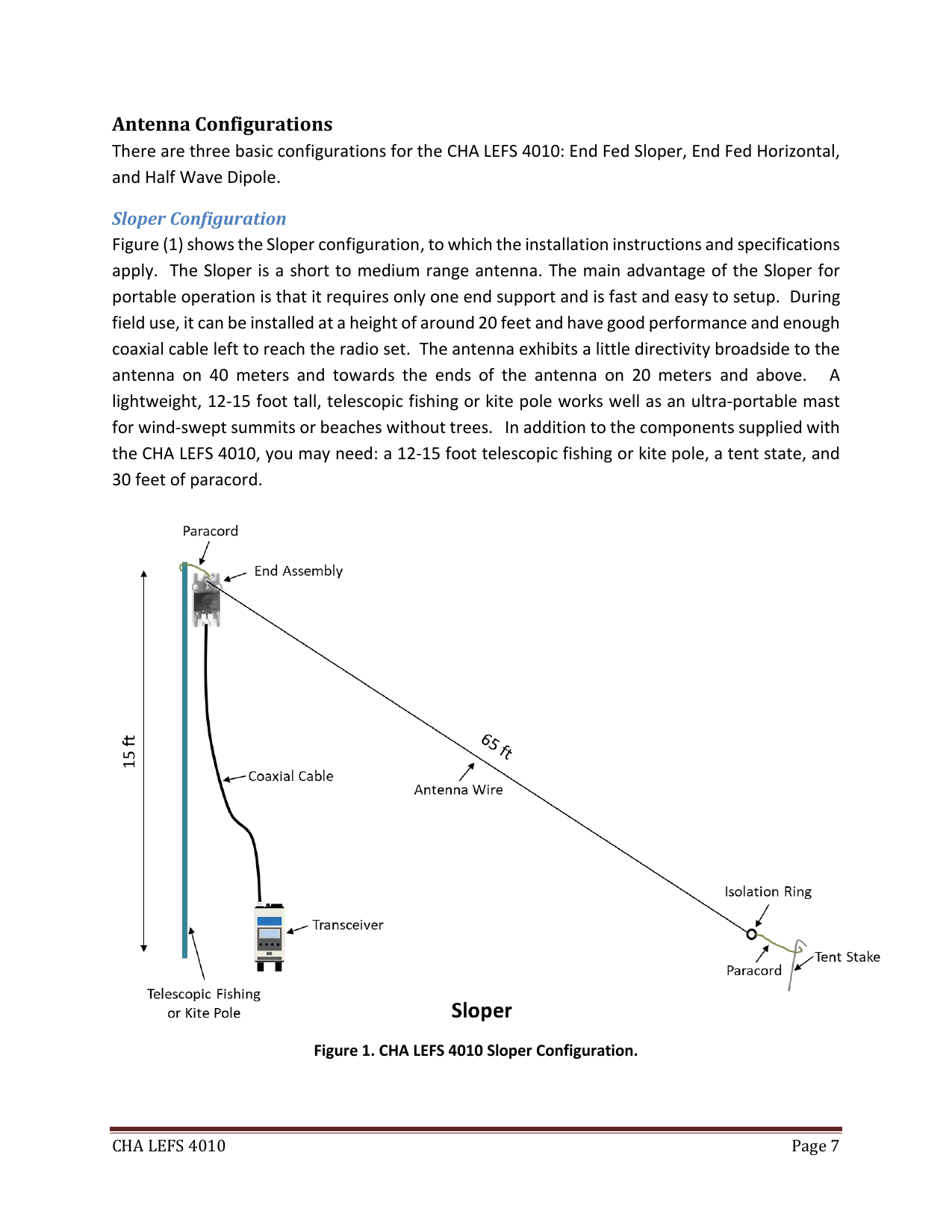

See the installation before you buy
How the complete system goes together
Use this official visual to understand the product’s scale, component order, and documented deployment paths before choosing a configuration.
Choose the deployment, not just the hardware
Documented ways to use this system
Each card describes a complete guide-controlled path. Connector fit alone does not create another supported configuration.
Inverted V or L
Use the floating isolation ring and available supports to fit the controlled 65-foot wire into the site.
Horizontal / NVIS
Use a horizontal deployment for broadside coverage or the guide's low-height regional/NVIS path.
Configuration boundary: the 65-foot EFHW and each optional dipole wire set are different complete radiators. Use the exact supported wire, link positions, feed arrangement, height, and geometry before applying a pattern or SWR reference.
Complete product reference
Key specifications
- Core frequencies
- 7.0-7.3 MHz, 14.1-14.35 MHz, 21.0-21.45 MHz, and 28.0-29.7 MHz
- Optional dipole bands
- 30, 20, 17, 15, and 12 m through the applicable LINK-D, LINK-D15, or WARC-D wire set
- SWR
- Less than 2:1 on the listed ranges in the documented installation; site and height dependent
- Power
- 100 W SSB, 50 W CW, 25 W digital and all other modes
- RF connection
- BNC socket
- Radiator length
- 65 ft EFHW wire
- Wire
- 20-gauge tinned-copper PTFE insulated radiator
- Weight
- Approximately 1.1 lb
- Setup
- One operator, around 10 minutes
Know what arrives and what the site still needs
Included and customer-supplied equipment
Included or selected with this product
- CHA LEFS end assembly
- 65 ft 20-gauge tinned-copper PTFE antenna wire
- Permanently attached and floating isolation rings
- Selected no-coax or 25 ft RG-316 choked-coax option
- OD storage pouch
Customer supplies or selects as needed
- Paracord and suitable supports
- Analyzer or SWR meter for installed verification
- Tuner when operating beyond the listed resonant ranges or when the installation requires it
- Optional LINK-D, LINK-D15, or WARC-D wire set for the documented dipole configurations
Coverage & Pattern
See the reviewed 2D and interactive 3D patterns
Open only the models that match this complete product configuration, band, height, ground, feed, and RF return.
