TACYAGI-70 · VHF/UHF & Yagi
A VHF/UHF radiator, directional antenna, or related component.
Why operators make room for it
Build a portable VHF/UHF position with purpose
Portable VHF/UHF work becomes far more intentional when the operator can control where the signal goes and how the antenna is polarized.
This level of compatibility means that no matter the situation—whether in the field, on a rooftop, or mounted on a vehicle—users can rapidly deploy and stabilize the CHA TACYAGI-70 .
For the operator, that means a station that can be aimed and verified for the intended path, with assembly order, polarity, support, and clearance treated as part of performance.
Quick product reference
Key Specifications
- Product type
- VHF/UHF & Yagi
- Primary role
- A VHF/UHF radiator, directional antenna, or related component.
- Color
- black; white
- Usable Frequency Range
- 400 – 470 MHz, which includes the Amateur Radio Service 70cm Band, General Mobile Radio Service (GMRS), or other Military, Government, and Public Service frequencies in that range
- Power
- 100W
- Gain
- 7 dBi
- F/B Ratio
- >15 dB
- Polarization
- Vertical (can also be Horizontal when handheld)
- Weight
- 13.7 Oz
- Dimensions
- Boom Length: 17 ¾ In., Reflector Height: 14 ¼ In., Width at Gamma Match: 2 In
- Swr
- Less than 2.5:1 from 400 – 470 MHz
- Setup Time
- One operator, less than 3 minutes
- Deployment role
- Element order, polarization, and direction are configuration-dependent
- Verification
- Confirm SWR and safe clearance before transmitting
Operator decision support
Plan the complete setup
See what this product is best suited for, what the documented setup needs, and the boundaries to confirm before deployment.
- Best for
Portable VHF/UHF work becomes far more intentional when the operator can control where the signal goes and how the antenna is polarized.
- What else you need
Aim or rotate a directional configuration toward the intended station, repeater, or signal path.
- Compatible with
- MPAS READY mounting components in the documented portable configurations
- CHA COAX with PL-259 at the station end and BNC at the antenna end
- Expansion options
- CHA SS ADAPTER
- CHA COAX
- SO-239 Barrel Connector
What an operator can do
- Assemble the antenna in the documented element order, polarity, and boom orientation.
- Aim or rotate a directional configuration toward the intended station, repeater, or signal path.
- Verify feed-line routing, connector security, SWR, and safe clearance before transmitting.
Complete product details

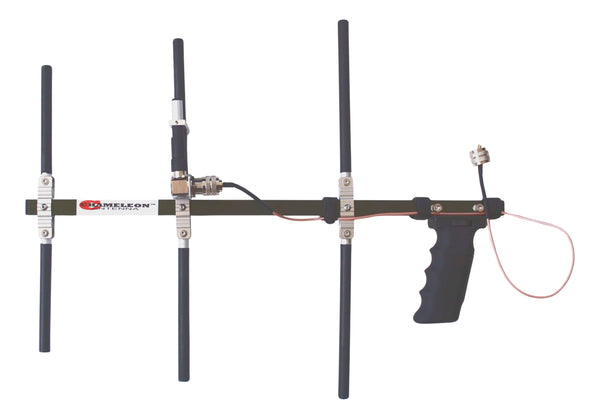

The CHA TACYAGI-70 Tactical Foldable Yagi antenna from Chameleon Antenna not only excels in emergency communication, preparedness, and tactical scenarios, but also offers exceptional flexibility due to its compatibility with all Chameleon Antenna mount systems. This makes it easy to deploy in various environments and use cases.
Compatibility with Mount Systems
The CHA TACYAGI-70 is equipped with a removable handle, which features a 1/4-20 thread underneath, allowing it to be mounted on a wide range of Chameleon Antenna systems for versatility in setup. This includes:
- JAWMOUNT: A mount for easy clamping to different surfaces.
- SPIKE MOUNT: Perfect for ground-level setups in soft terrains like grass, sand, or dirt.
- UCM: A universal clamp mount for attaching to various surfaces and objects.
- CARBON FIBER TRIPOD: A lightweight, portable tripod for stable outdoor and portable setups.
- PORTABLE MAST: Ideal for elevating the antenna in various field operations.
- SURVEYOR-A for Surveyor Tripod: Allows the antenna to be used with standard surveyor tripods, making it ideal for fieldwork and mobile communication setups.
This level of compatibility means that no matter the situation—whether in the field, on a rooftop, or mounted on a vehicle—users can rapidly deploy and stabilize the CHA TACYAGI-70.
Indoor Stealth Operation for HOA Operators
The CHA TACYAGI-70 can also be used for indoor stealth operations, which is particularly beneficial for HOA operators. Its compact size (only 17.8 inches long) allows for discreet placement inside homes or other indoor environments, making it ideal for operators who must remain under the radar due to housing association restrictions. Despite its small footprint, the antenna delivers impressive performance, ensuring reliable communication without drawing attention.
Specifications
- Frequency Range: 400~470 MHz
- Size: 17.8 inches long
- Bandwidth: 20 MHz
- VSWR: <1.5
- Gain: 7 dBi
- Horizontal 3dB Beam Width: 53°
- Vertical 3dB Beam Width: 45°
- Front To Back Ratio: >15 dB
- Weight: 0.500 kg (1.10 lb)
- Max Power: 100W
Conclusion
The CHA TACYAGI-70 Tactical Foldable Yagi is a versatile and powerful tool for emergency responders, military personnel, amateur radio operators, and preppers. Its broad compatibility with Chameleon Antenna mounts, combined with its indoor stealth capabilities, makes it an ideal choice for anyone needing reliable, high-performance communication in any environment. Whether operating from a tactical field site or discreetly from inside an HOA-restricted home, the CHA TACYAGI-70 ensures you stay connected when it matters most.
