The CHA BLANK is a foundational and highly adaptable component within Chameleon Antenna's portable antenna systems, providing versatility by supporting the CHA SS58, CHA SS17, and CHA SS25 whips. These options enable users to choose the best configuration for their needs, from compact setups to extended-range solutions.

Compatible Whips and Their Advantages

CHA SS58:

• Size: 58 inches (approximately 4.8 feet), collapsible stainless steel whip.
• Usage: Ideal for operators needing a shorter, lightweight antenna option. Its size makes it suitable for more compact setups where portability and quick deployment are critical, while still providing effective HF operation.
• Frequency Range: Supports multiple bands within the HF range, and works well with the CHA M-COIL for extending frequency coverage. This whip is especially beneficial in environments where a full-sized whip may be challenging to use, like dense vegetation or urban areas with space limitations.

CHA SS17:

• Size: 17 feet, telescopic stainless steel whip.
• Usage: Suitable for field operations where a longer whip can enhance communication range and overall efficiency. The SS17’s length allows it to resonate efficiently from approximately 13.8 MHz to 117 MHz, covering popular amateur radio bands from 20-6 meters when fully extended.
• Frequency Range: The SS17 works effectively on the 20-10 meter bands without additional loading coils, and it can be adjusted with a Medium Loading Coil to support 30 and 40 meters, giving it added flexibility for single-band operation.

CHA SS25:

• Size: 25 feet, telescopic stainless steel whip.
• Usage: The SS25 is ideal for operators seeking an extended reach, as its length provides a stronger signal and broader operational range. This whip is particularly beneficial for applications requiring improved propagation, such as emergency communications or operating in rural or isolated areas where maximizing range is essential.
• Frequency Range: Designed for enhanced multi-band performance and offers an efficient radiation pattern across HF frequencies. When paired with the CHA BLANK and other compatible MPAS components, the SS25 whip can be adjusted to cover various bands with minimal tuning, which is advantageous for users who need broad band coverage.

CHA BLANK Features and Integration

• 3/8" x 24 Threaded Connection: The CHA BLANK’s threaded connection enables secure attachment of compatible whips like the SS58, SS17, and SS25, ensuring a stable and reliable setup in any configuration.

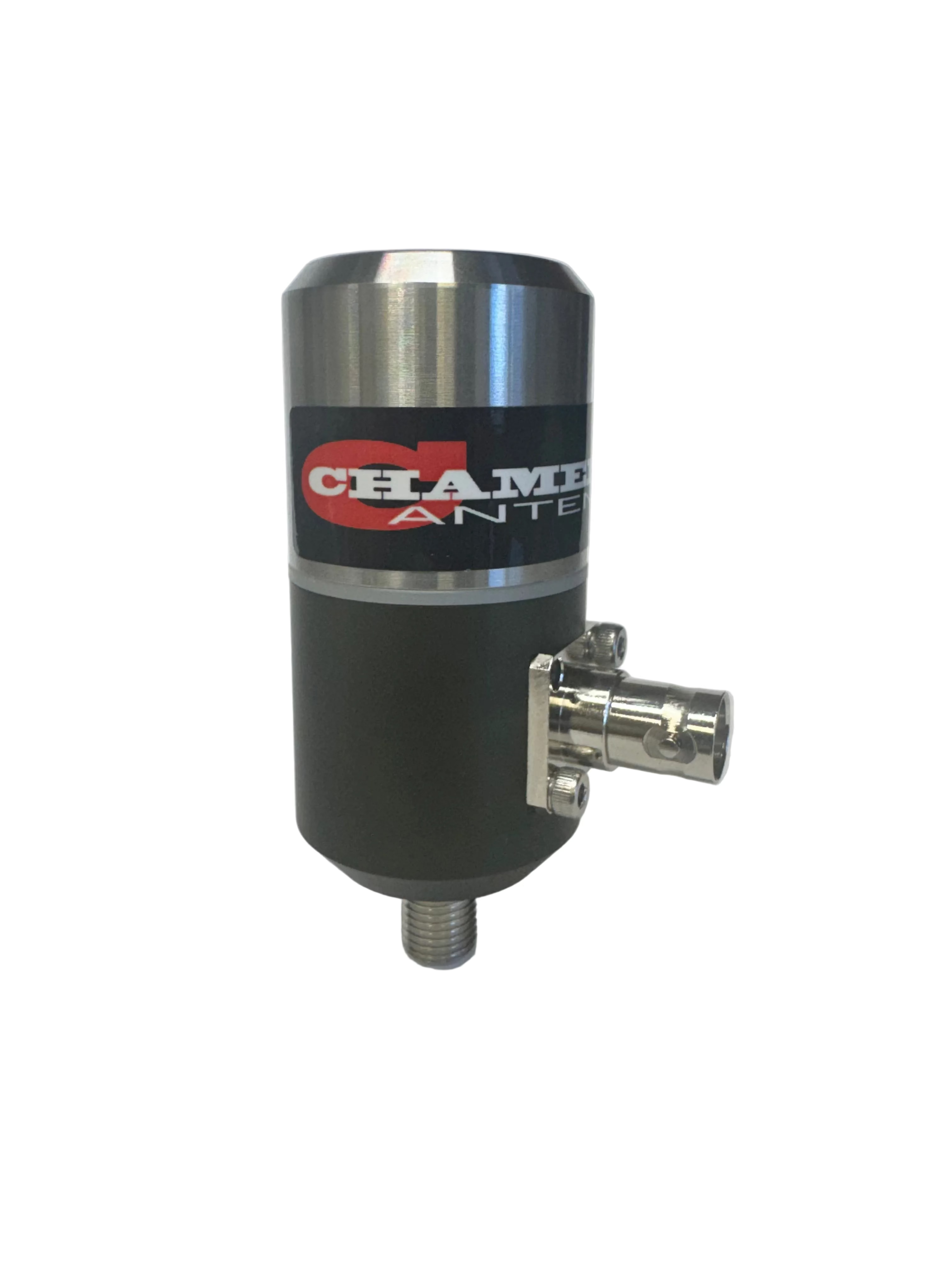

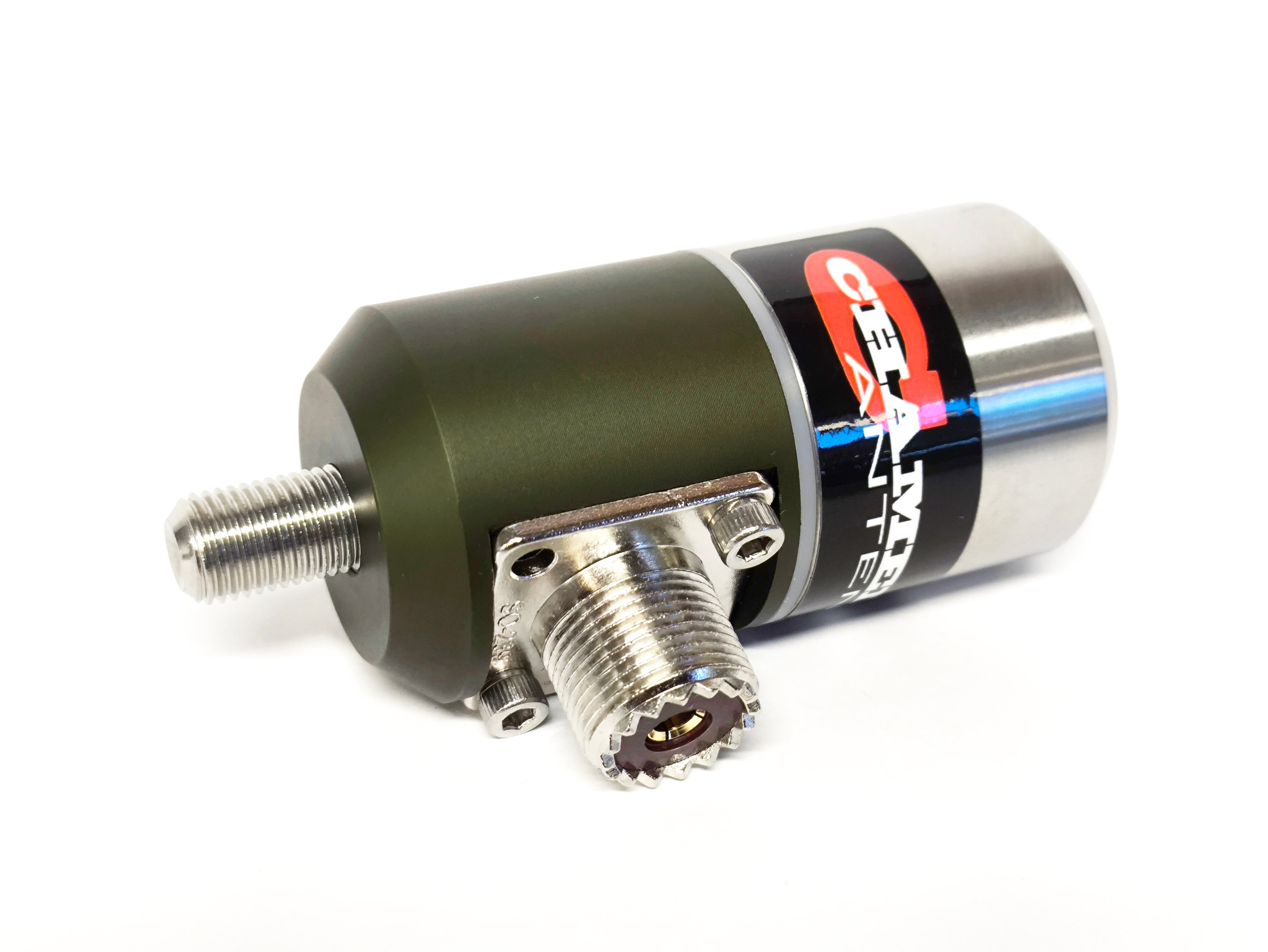

• Coaxial Adapter Options: Converts to either an SO-239 or BNC connection, allowing easy integration with different types of coaxial cables and RF equipment.
• Base and Radial Support: When combined with the CHA PUCK HUB, the CHA BLANK supports up to six radials using Banana Jacks. Radials enhance the antenna’s efficiency by completing the ground circuit for unbalanced antenna designs like vertical whips, improving SWR and overall performance.

Benefits of Using the CHA BLANK with Each Whip

• Versatile Configuration Options: Depending on the whip used, the CHA BLANK allows operators to tailor their setup for various band conditions and operating environments. For instance, using the CHA SS17 and CHA M-COIL, operators can cover the 30 and 40 meter bands, ideal for longer-distance HF communication. The shorter SS58 provides a more compact option while still performing well on upper HF bands.
• Enhanced Portability: The CHA BLANK and compatible whips offer quick setup and breakdown, making them suitable for operators who frequently move locations or need a lightweight, transportable solution.
• Optimal SWR Tuning: The CHA BLANK enables precise tuning through whip adjustments and radial length modifications, ensuring a low SWR across the chosen operating band. This is particularly useful for portable operations where site conditions, nearby objects, and ground conductivity might affect resonance.

Example Setups with the CHA BLANK

Compact Setup with CHA SS58:

• Ideal for short-range HF communication on higher bands like 20, 15, and 10 meters.
• The SS58 is compact and easy to deploy, making it suitable for fast setups in environments where space is limited.

Extended Coverage with CHA SS17 and Loading Coil:

• This setup supports a broader frequency range, enabling operation on 30 and 40 meters by adding the Medium Loading Coil.
• The SS17’s length helps achieve stronger signal strength, making it suitable for moderate-range HF contacts.

Maximized Range with CHA SS25:

• The 25-foot SS25 whip provides the highest efficiency and longest-range capabilities for the CHA BV configuration.
• This setup is recommended for users who need reliable, long-distance communication or for emergency response scenarios where maximizing signal strength is crucial.

Technical Specifications for CHA BLANK Configurations

• Power Rating: Supports up to 500W SSB and 300W CW and digital modes, ensuring flexibility across various transmission modes.
• Frequency Range: From 6.9 to 30 MHz for the CHA BV setup, with potential extended range to 80 meters when used with the Inverted Lazy “L” configuration.
• Setup Time: Typically under 10 minutes with practice, making it suitable for quick deployment needs.
• Water Resistance: Built to withstand various weather conditions, allowing outdoor operation in diverse climates.

CHA BLANK SO-239 SQUARE

The CHA BLANK SO-239 SQUARE is a compact, heavy-duty inline adapter featuring dual SO-239 (UHF female) connectors — one on the input side and one on the output side — and a 3/8”-24 threaded bottom male stud. This configuration allows the adapter to connect directly to any antenna or accessory equipped with a SO-239 (UHF male) jack while also threading into any standard antenna mount with a 3/8”-24 female thread.

This unique design provides maximum versatility across a wide range of antennas, mounts, and configurations — ideal for portable, mobile, and base station setups. Precision-machined from high-grade materials, the CHA BLANK SO-239 SQUARE ensures excellent RF conductivity, rugged mechanical strength, and long-term reliability across HF, VHF, and UHF frequencies.

FEATURES

• Dual SO-239 (UHF Female) Connectors: Allows seamless in-line connection between any two SO-239 (UHF male) components such as antennas, matching units, or couplers.
• 3/8”-24 Threaded Base: The bottom male stud fits any mount with a 3/8”-24 female thread, enabling direct installation on tripods, masts, magnetic mounts, or vehicle brackets.
• Universal Compatibility: Works with antennas and accessories using SO-239 (UHF Male) connectors across HF, VHF, and UHF bands.
• Rugged Construction: Machined aluminum square body provides superior strength, corrosion resistance, and stable RF performance.
• Modular Integration: Ideal for portable, mobile, or test configurations requiring fast equipment changes without adapters or couplers.

COMPATIBLE ANTENNAS

Yaesu ATAS-120A – Motorized, automatic-tuning HF/VHF/UHF mobile antenna featuring a SO-239 (UHF male) connector. The CHA BLANK SO-239 SQUARE ensures a strong and efficient RF interface for mobile or portable use.

Diamond SD330 – Professional HF screwdriver antenna with a SO-239 (UHF male) connector. The CHA BLANK SO-239 SQUARE provides solid, low-loss RF continuity and mechanical stability.

Comet HFJ-350 Series – Compact, portable HF antennas covering 3.5–30 MHz, all equipped with SO-239 (UHF male) connectors. Perfect for rapid field deployment using the CHA BLANK SO-239 SQUARE.

Chelegance M-104 HF – High-efficiency HF mobile antenna for 40 m to 10 m operation with a SO-239 (UHF male) base connector. Fully compatible with the CHA BLANK SO-239 SQUARE for mobile and tactical operations.

Moonraker MD-3500 – Motorized HF screwdriver antenna (3.5–30 MHz) with a SO-239 (UHF male) connector. Directly compatible with the CHA BLANK SO-239 SQUARE for high-performance RF transfer.

HD-330 (3.5–50 MHz) – Professional HF screwdriver antenna equipped with a SO-239 (UHF male) base connector. The CHA BLANK SO-239 SQUARE provides a stable and efficient connection for mobile or fixed operations.

SUMMARY

The CHA BLANK SO-239 SQUARE is a precision-engineered, multi-purpose adapter designed for operators who need maximum connection flexibility. Its dual SO-239 (UHF female) design provides a robust RF interface between SO-239-equipped antennas and accessories, while the 3/8”-24 threaded base allows direct mounting onto standard antenna supports.

Connector Configuration: Dual SO-239 (UHF male) + 3/8”-24 threaded bottom male stud

Compatible With: Yaesu ATAS-120A, Diamond SD330, Comet HFJ-350 Series, Chelegance M-104 HF, Moonraker MD-3500, HD-330 (3.5–50 MHz), and any antenna using a SO-239 (UHF male) connector.

Mount Compatibility: Any 3/8”-24 female threaded mount or support.

Applications: Base stations, mobile installations, tactical setups, field deployments, and test environments.

***

Our blemished products are fully functional, they just didn't meet our high standards. They are a great product at a discounted price for someone who doesn't mind a slight imperfection. WE DO NOT ACCEPT RETURNS ON BLEMISHED PRODUCTS.
