CHA FSR — Faraday Strip Radial System

The CHA FSR (Faraday Strip Radial System) is a man-packable, MPAS READY radial and counterpoise system engineered for enhanced efficiency, rugged durability, and portability in the field. Designed for serious operators, the CHA FSR delivers superior performance while remaining compact and easy to transport.

Enhanced Performance

In initial field tests conducted in Northern Alabama, the CHA FSR demonstrated a median increase in relative field strength between 23% and 28% compared to the standard four 12.5 ft. wire radials included with the Basic Vertical (BV) and Portable Resonant Vertical (PRV) antennas. With further testing and refinement, performance efficiency is expected to increase.

MPAS Ready

The CHA FSR is fully MPAS READY, making it compatible with all Chameleon Antenna vertical antenna systems, including the SS17, SS25, MPAS, MCC, and many others.

Durable Stainless Steel Coupling Adapter

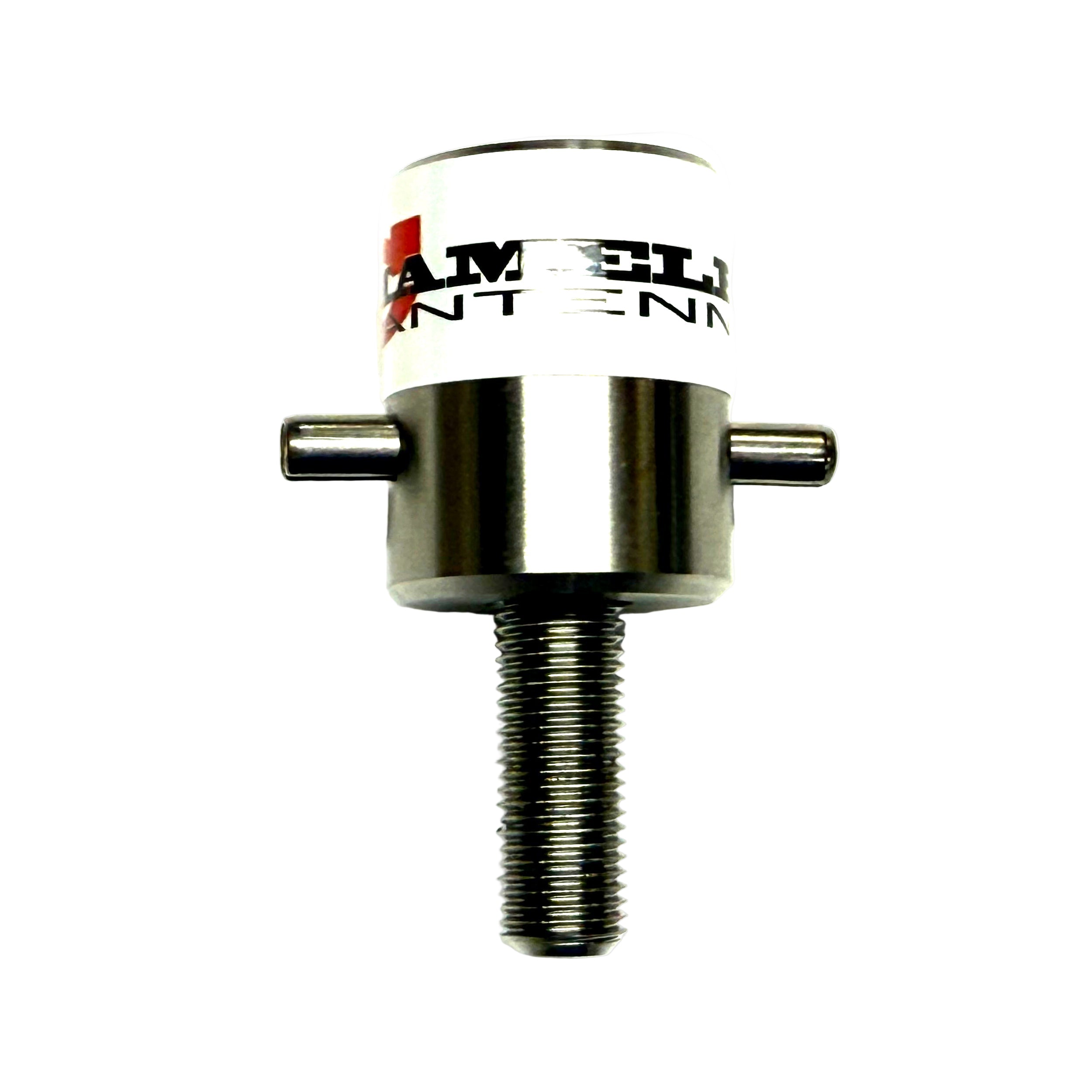

The system includes a special stainless steel 3/8-24 coupling adapter, designed for universal mounting. This adapter features a 3/8-24 male thread at the bottom to sandwich the FSR securely on any 3/8-24 mount system, and a 3/8-24 female thread on top to accommodate bases such as the CHA BLANK, CHA HYBRID, and CHA MCC.

Portable and Practical

At a packaged weight of 5 lbs. and compact dimensions of TWO 6 x 4 inches bundles, the CHA FSR is built for portability. Whether you’re heading into the mountains, the field, or an emergency deployment, this system packs down easily for transport without sacrificing performance.

Simple Deployment

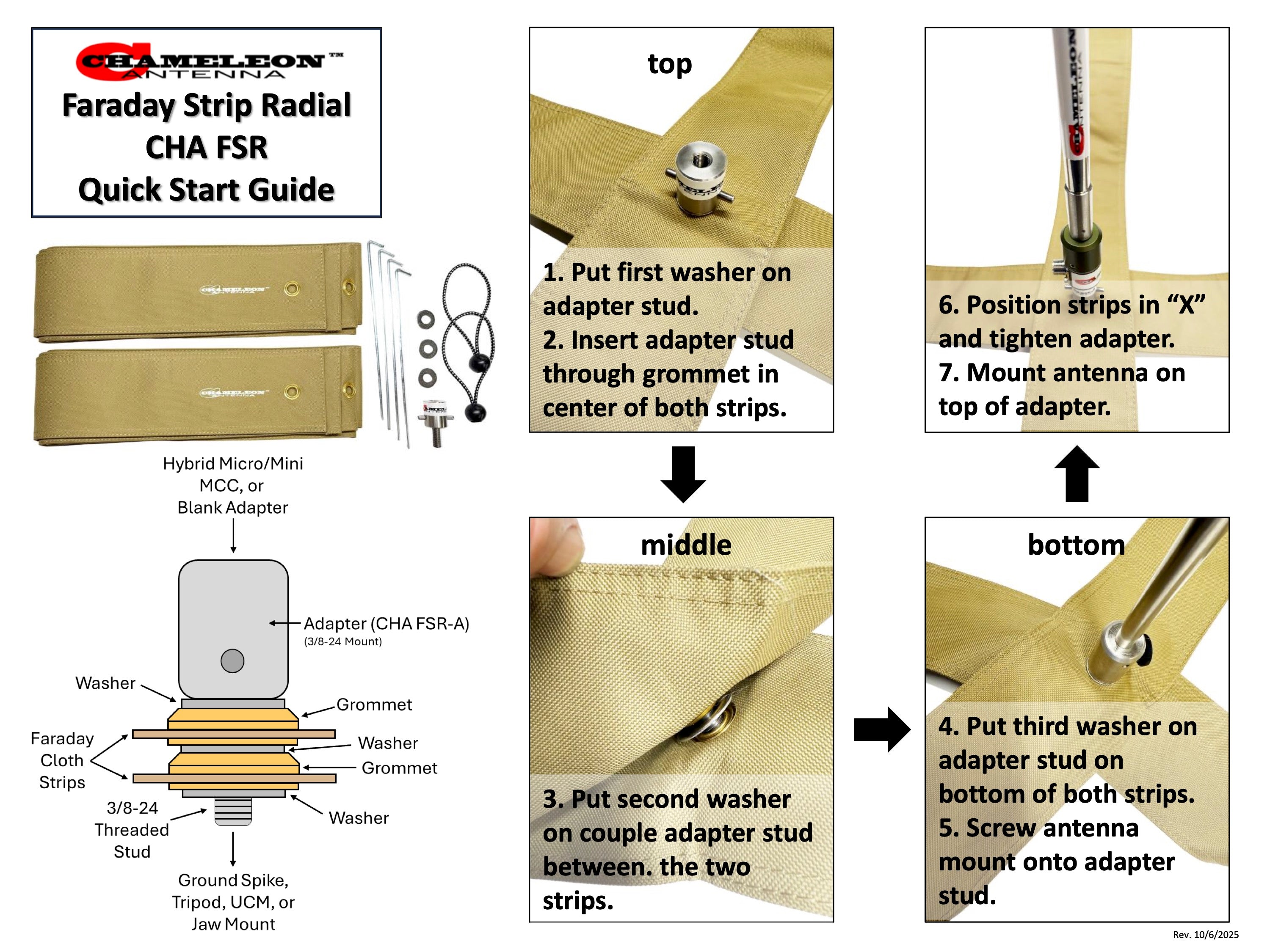

• Attach the Faraday Strips to your mount using the included hardware.

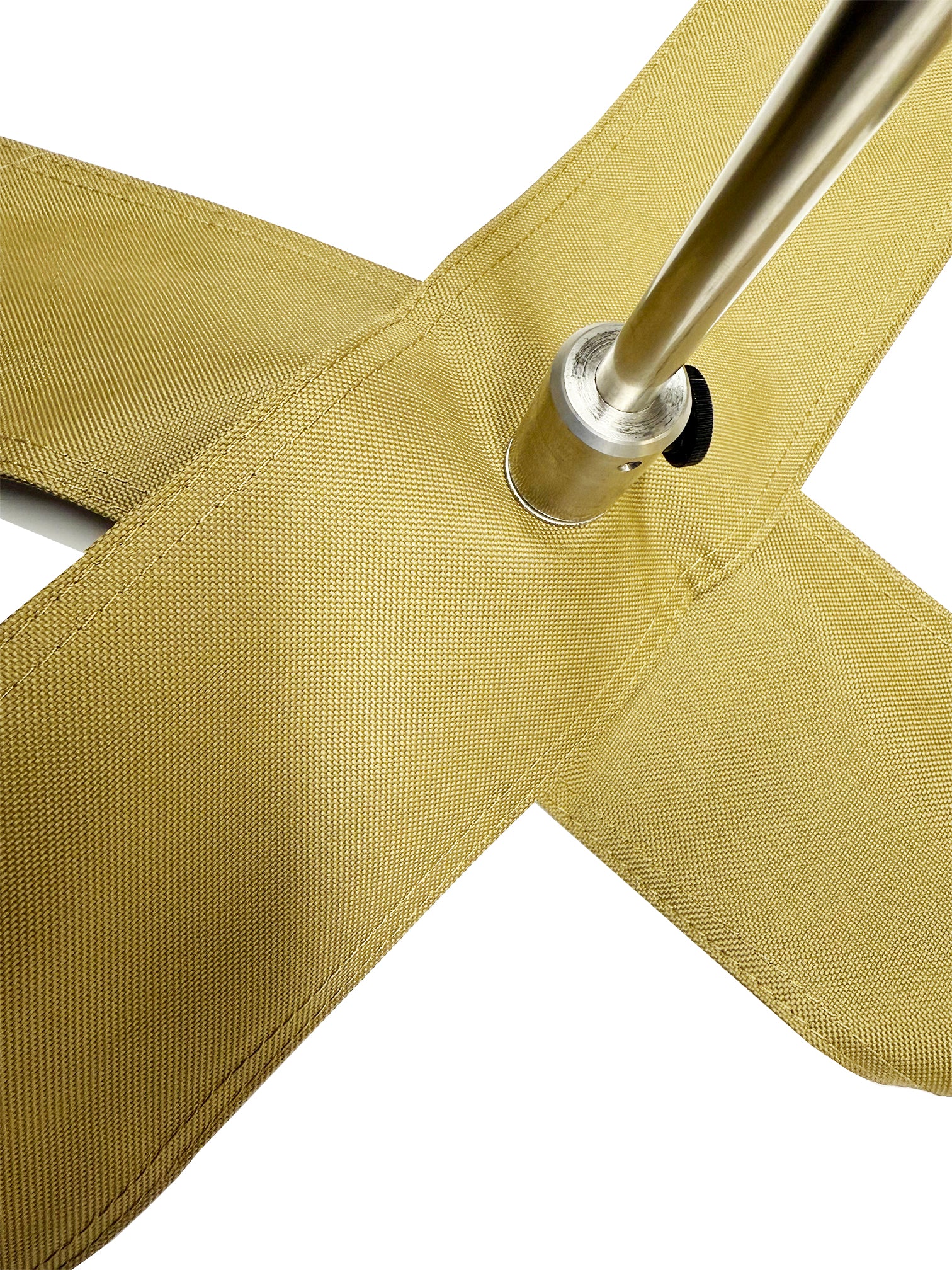

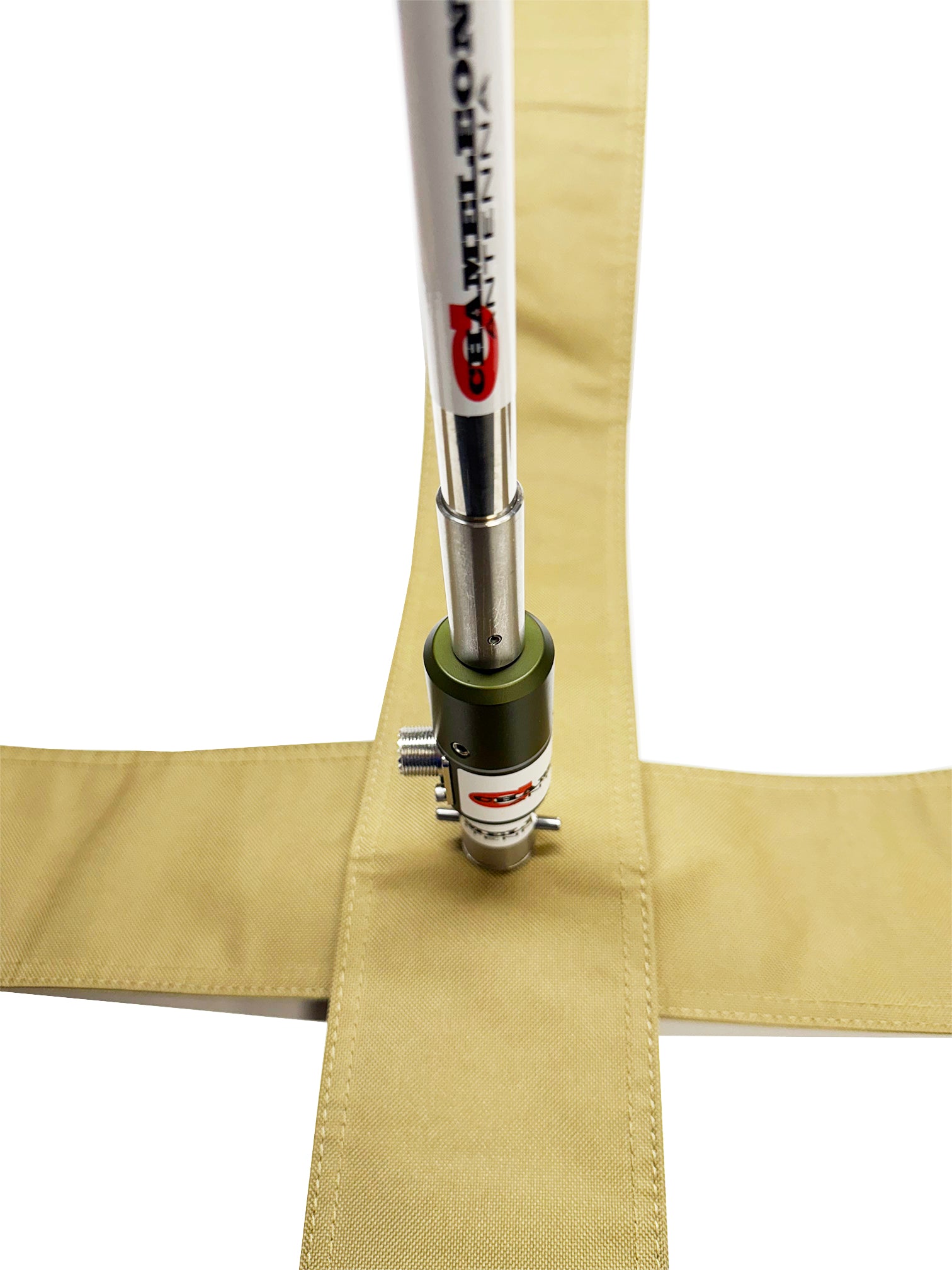

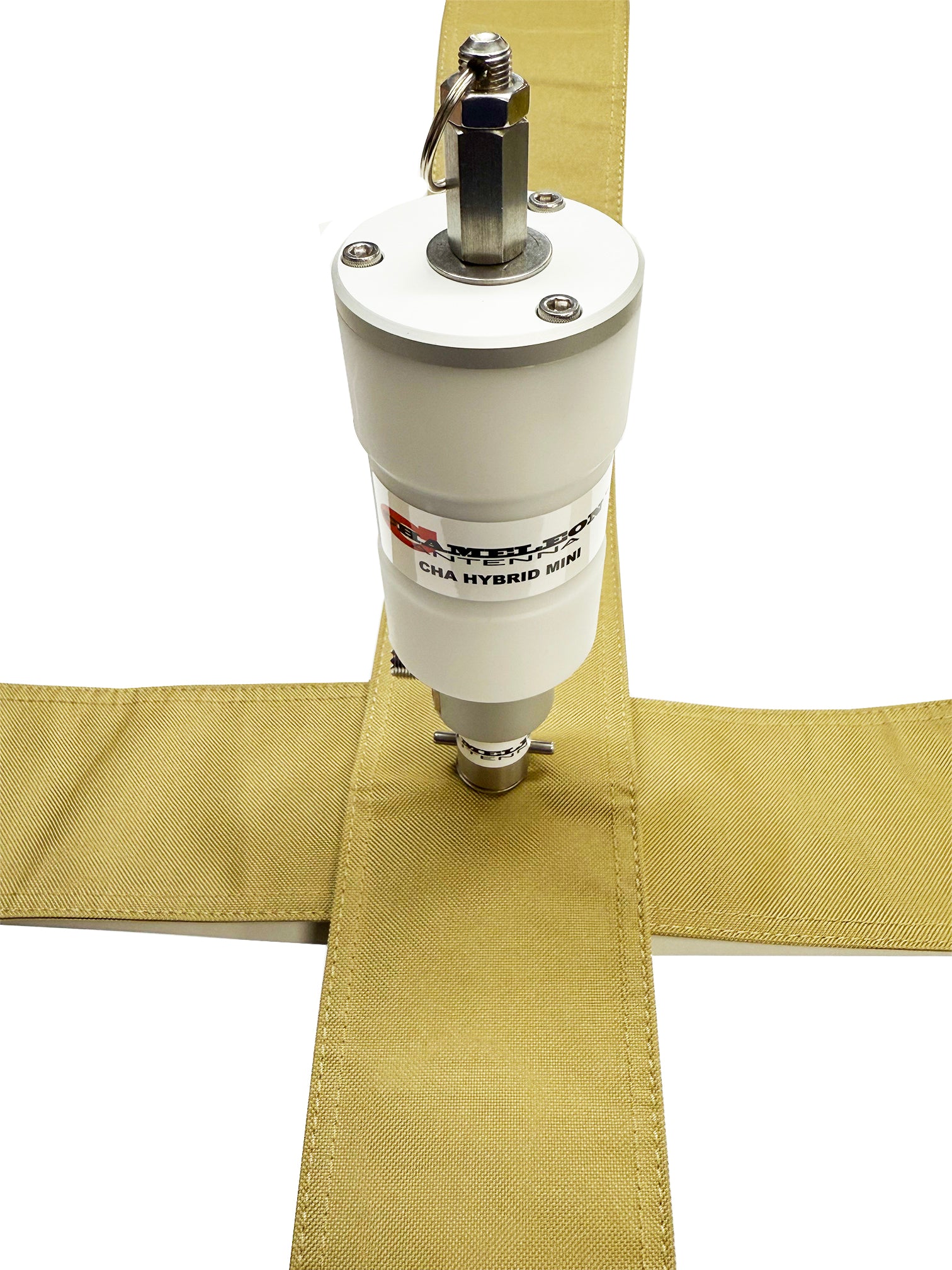

• Lay the strips out in an “X” pattern for an omni-directional radiation pattern.
• Secure the strip ends with the included tent stakes.

What’s Included

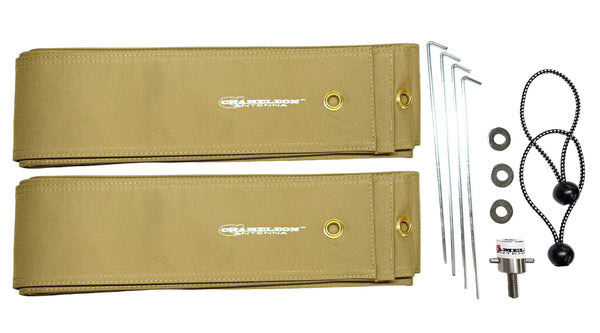

• Two 20 ft. Faraday Radial Strips
• Four Tent Stakes

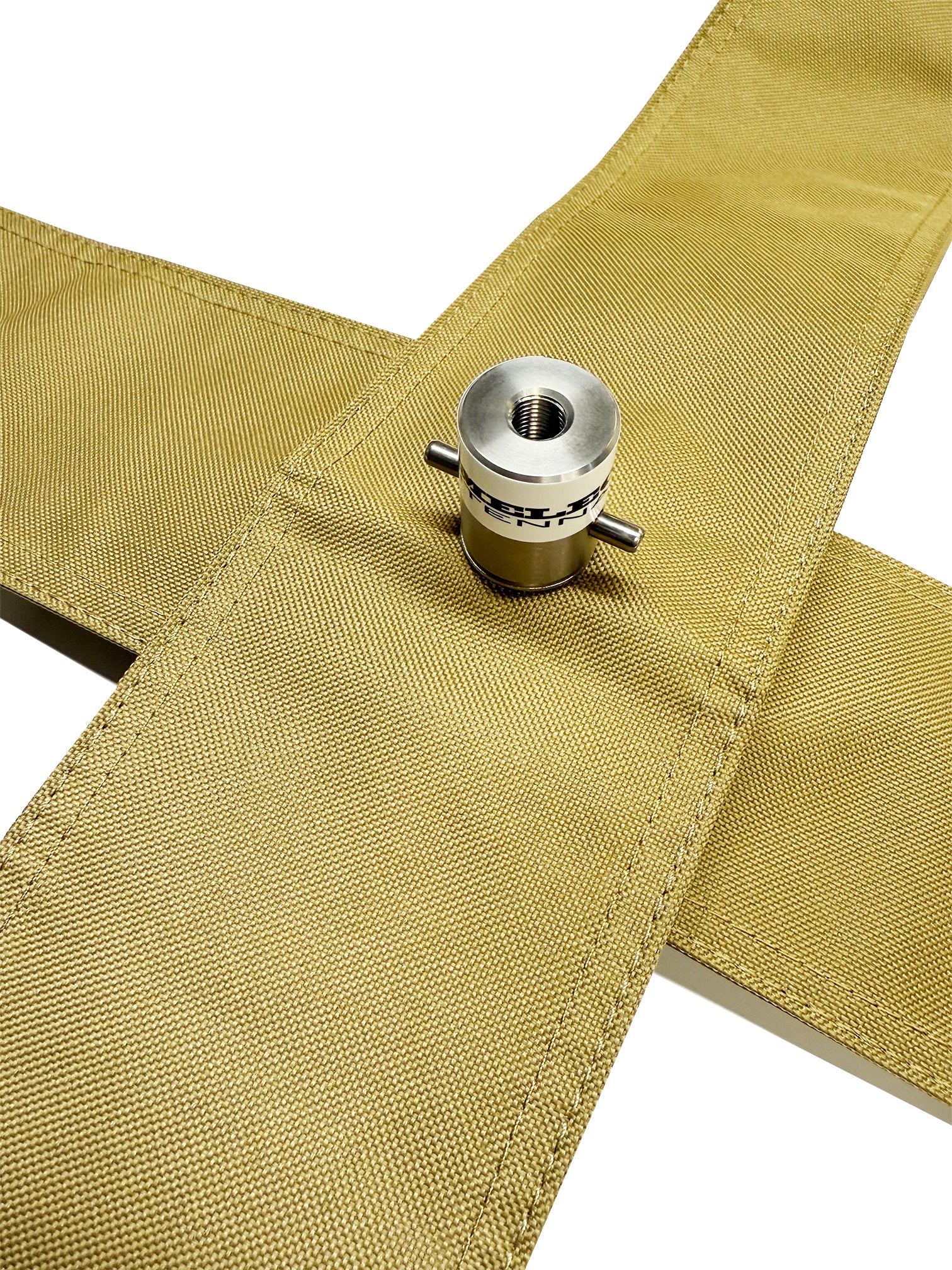

• CHA FSR-A Special Stainless Steel 3/8-24 Coupling Adapter
• Attachment Hardware
• Two Bungi Balls

Here’s the EXTRA section updated with your new point about visibility, safety, and durability advantages of the CHA FSR compared to thin wire radials. This version keeps your professional Chameleon Antenna product tone and integrates seamlessly into your existing product description.

Manufacturing Process

The CHA FSR is built using a multi-layered composite design that combines advanced electrical performance with rugged field durability.

At its core, each radial strip features a Faraday conductive fabric composed of Copper–Nickel–Polyester fibers woven in a diamond pattern for multidirectional conductivity and mechanical strength.

Technical Fabric Data:

• Fabric Thickness: 0.078 mm
• Surface Resistance: Below 0.05 Ω
• Material Composition: Copper, Nickel, Polyester
• Woven Type: Diamond Pattern

To ensure long-term environmental resistance, the Faraday cloth is encapsulated between two layers of 900D Oxford cloth — the same TAN-colored, abrasion-resistant material used in the CHA Sling Bag. This durable outer shell protects the conductive layers from moisture, UV exposure, and wear, while maintaining the system’s flexibility and packability.

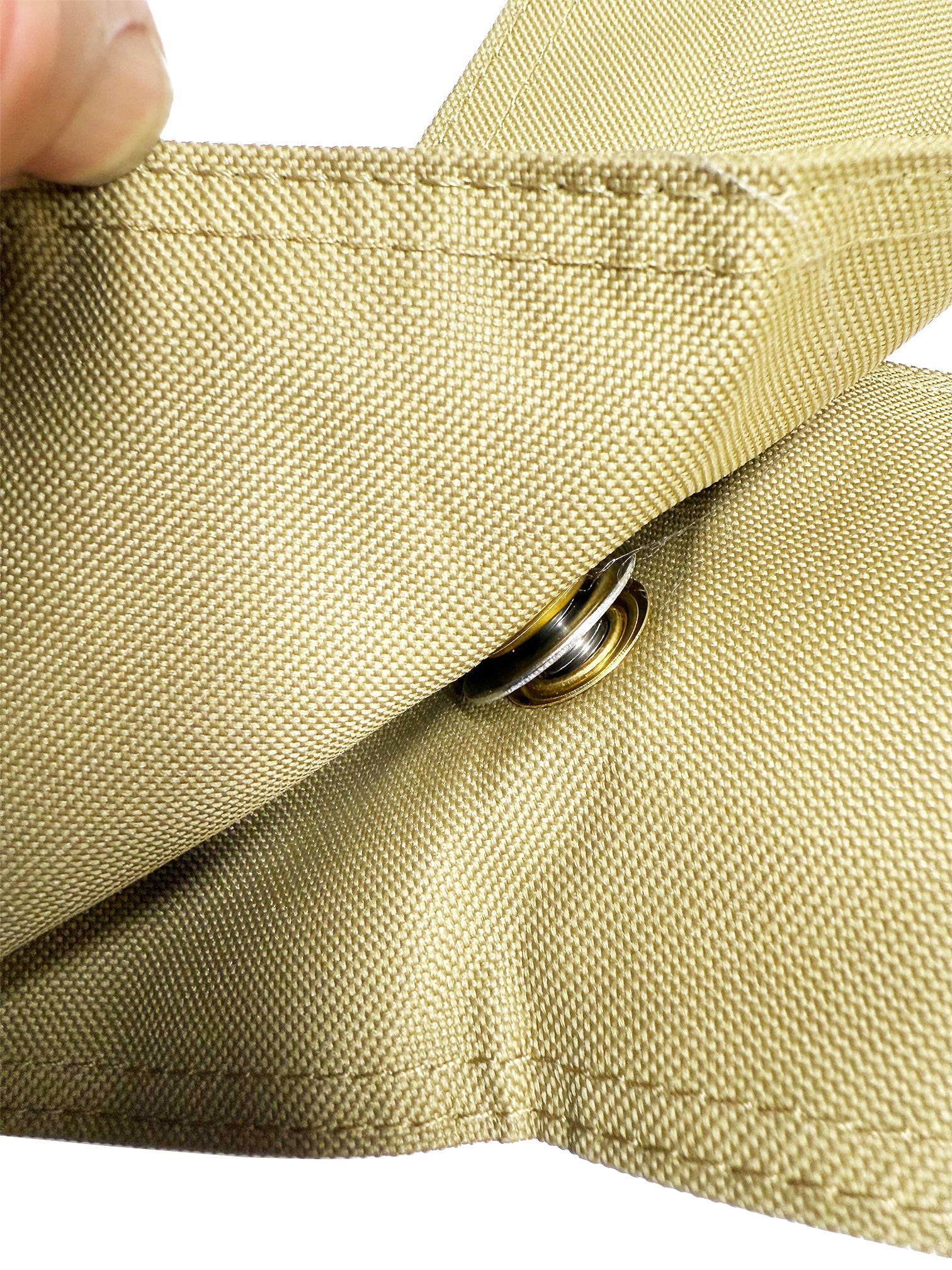

Each strip is equipped with three brass grommets — one at each end and one at the center — providing secure mounting and maintaining electrical continuity across the full length of the strip. The grommets also serve as contact points to ensure balanced current distribution during operation.

The CHA FSR includes a precision-machined stainless steel 3/8-24 coupling adapter (CHA FSR-A), designed to sandwich the system between any 3/8-24 mount and the antenna base. The adapter features a male 3/8-24 thread at the bottom and a female 3/8-24 thread on top, compatible with all Chameleon bases including the CHA BLANK, CHA HYBRID, and CHA MCC.

All assembly and quality control are completed in Nevada, USA, ensuring every unit meets Chameleon Antenna’s high manufacturing standards.

Performance Enhancement

The CHA FSR improves vertical antenna performance by addressing the key limitations of traditional wire radials — limited ground-plane surface area, inconsistent current distribution, and low mechanical resilience in field conditions.

The broad Faraday conductive surface creates a large, low-impedance return path, drastically reducing ground losses and improving the antenna’s radiation efficiency. The diamond weave of the Copper–Nickel fabric promotes uniform current flow in multiple directions, stabilizing the antenna’s omnidirectional radiation pattern and improving signal strength across all azimuths.

Field testing in Northern Alabama revealed a median increase in relative field strength between 23% and 28% compared to standard 4-wire counterpoise kits, with additional efficiency gains expected as ongoing testing continues.

Beyond electrical performance, the CHA FSR introduces significant safety and durability advantages:

• Enhanced Visibility: The TAN 900D Oxford outer layers make the CHA FSR highly visible compared to thin, low-profile wire radials. This is especially important in environments where people, children, pets, or elderly individuals may be walking near the antenna system. The increased visibility reduces tripping hazards and improves overall field safety.
• Increased Mechanical Strength: Unlike traditional wire radials that can easily break or kink if stepped on, the CHA FSR’s reinforced Oxford layers and flexible conductive core can withstand accidental foot traffic without losing structural or electrical integrity. This durability ensures dependable operation and minimizes downtime in the field.
• Field Repairability: In the rare case of damage, the CHA FSR’s layered construction and wide connection points make field repairs simpler and faster compared to repairing or replacing thin wire radials, which often require cutting and re-soldering.

These combined electrical and mechanical advantages make the CHA FSR not only a more efficient ground-plane system, but also a safer, more practical solution for portable and semi-permanent installations in public or group settings.

PROS

• Superior Efficiency: Increases relative field strength by 23–28% compared to traditional wire radials.
• Extremely Low Loss: Surface resistance below 0.05 Ω ensures maximum RF radiation efficiency.
• High Visibility and Safety: Easily seen in populated areas — reduces tripping risks and enhances operational safety.
• Rugged Durability: 900D Oxford layers and Copper–Nickel conductive fabric resist wear, UV, and moisture.
• Mechanical Strength: Resistant to crushing or damage if accidentally stepped on — ideal for public or field use.
• Fast Deployment: Fully deploys and stakes in under two minutes.
• Compact and Portable: Packaged weight 5 lbs., dimensions 16 × 12 × 4 inches.
• Universal Compatibility: MPAS READY — works with SS17, SS25, MPAS, MCC, and all Chameleon vertical systems.

Made in the USA: Designed, tested, and assembled in Nevada for consistent field-grade reliability.

Compact. Lightweight. Powerful. The CHA FSR delivers tested performance improvements, universal compatibility, and rugged portability — making it the ultimate radial solution for today’s portable vertical antenna systems.
