CHA PRV 2.0 – Portable Resonant Vertical Antenna

Versatile • Dependable • Stealth • Built to Last

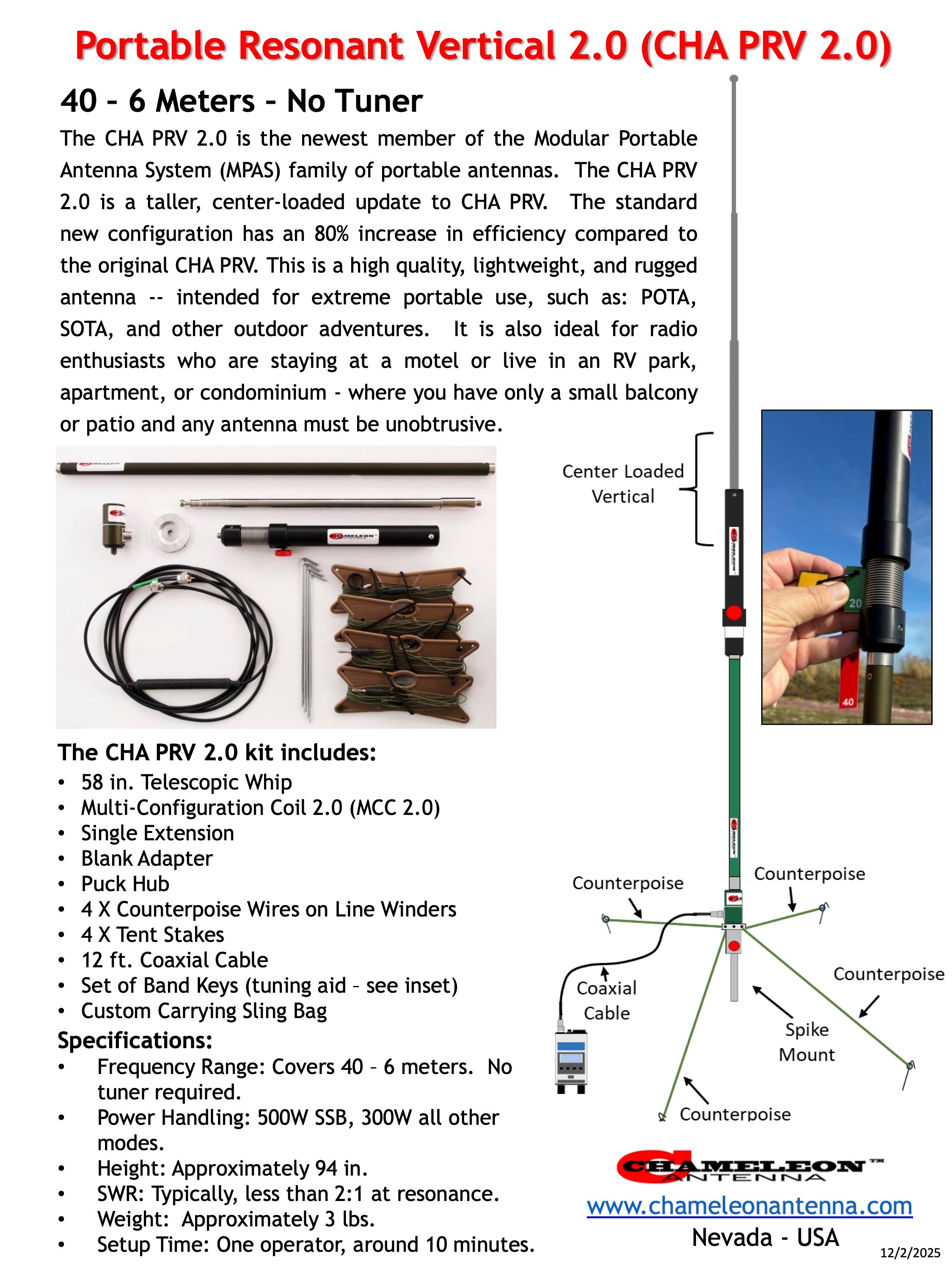

The CHA PRV 2.0 (Portable Resonant Vertical 2.0) is a high-performance, field-tunable HF vertical antenna system engineered for serious portable operators who demand efficiency, flexibility, and rapid deployment. Part of the MPAS (Modular Portable Antenna System) family, the PRV 2.0 is a major evolution of the original PRV design, delivering up to 80% greater efficiency in its center-loaded configuration while maintaining exceptional portability and stealth  .

Designed and manufactured in the USA, the CHA PRV 2.0 is ideal for POTA, SOTA, field operations, emergency communications, RV travel, apartments, balconies, and restrictive antenna environments where performance and discretion matter.

Multi-Configuration, Mission-Ready Design

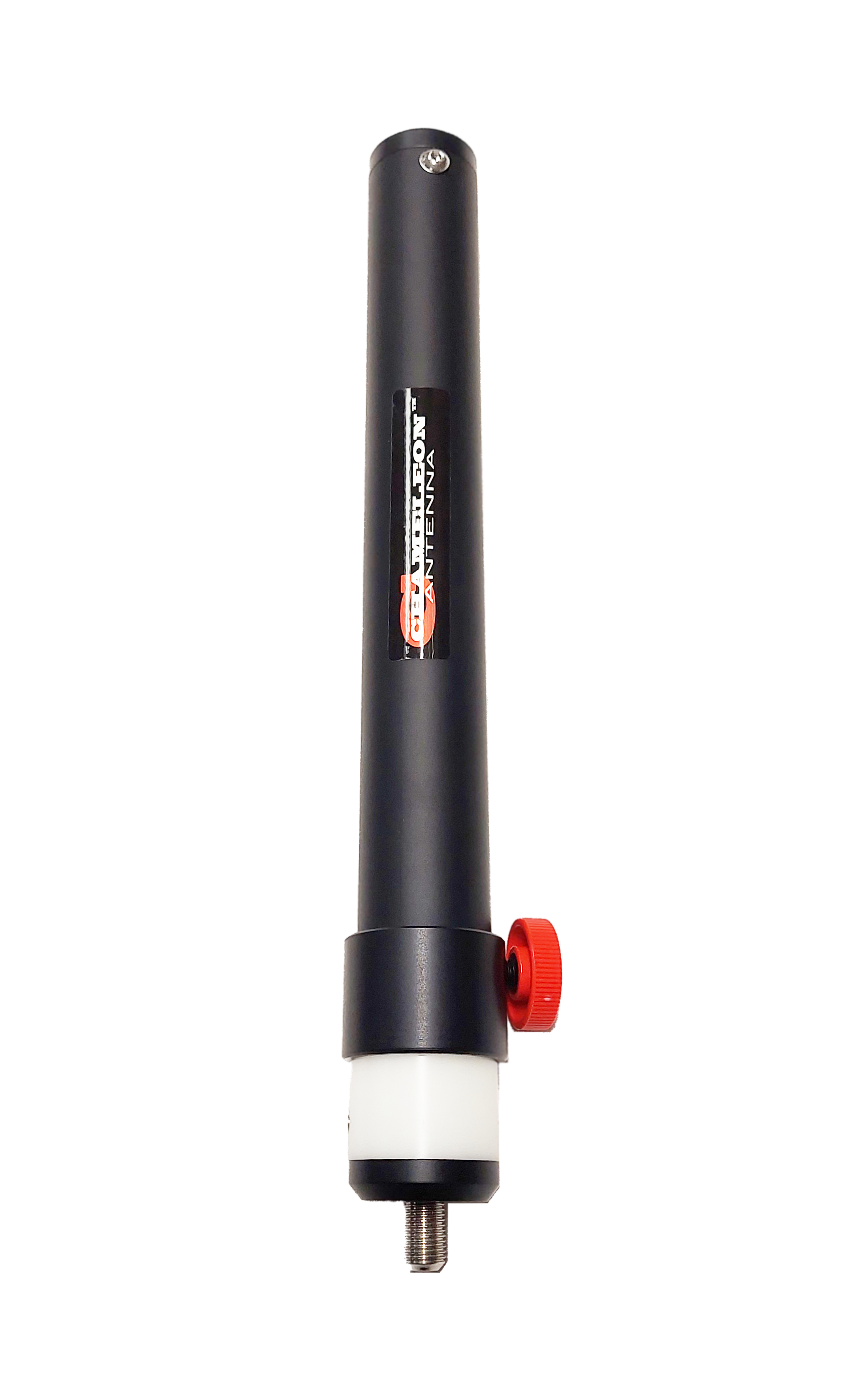

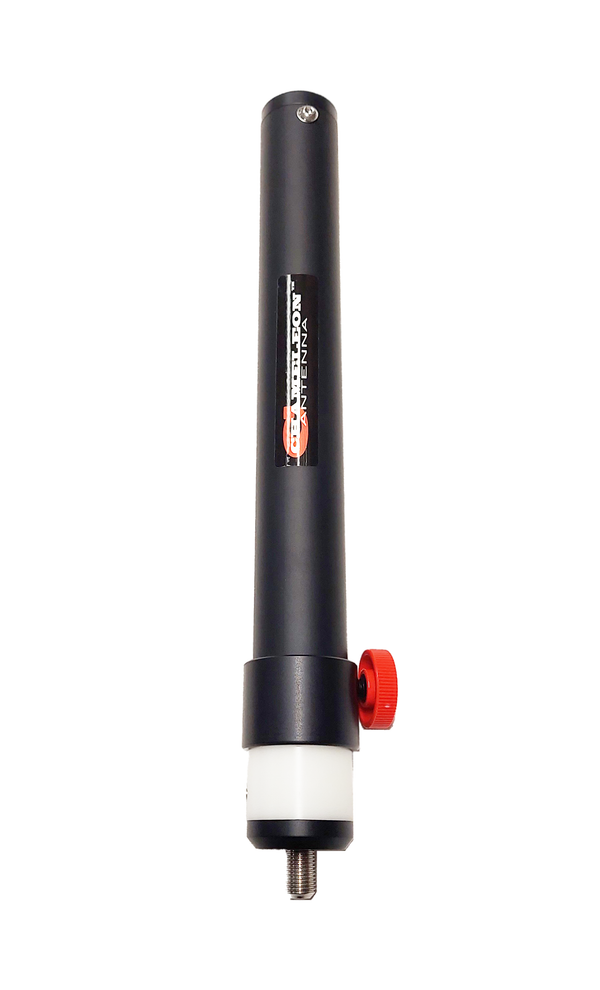

At the core of the CHA PRV 2.0 is the MCC 2.0 (Multi-Configuration Coil), a continuously adjustable loading system that allows the antenna to be quickly tuned to resonance without the need for an external antenna tuner. The antenna supports multiple deployment styles:

• Center-Loaded Vertical (Recommended)

Uses the included 24” CHA SINGLE EXT to raise the coil, dramatically improving radiation efficiency—especially on 40m and 30m.

• Base-Loaded Vertical

Ultra-compact and discreet, perfect for balconies, motel rooms, RV parks, and rapid travel setups.

• 6-Meter Vertical Off-Center Fed Dipole (OCFD)

A simple reconfiguration turns the PRV 2.0 into an effective resonant vertical antenna for 50–54 MHz.

• MPAS-Expanded Configurations (Optional)

Compatible with MIL Whips, SS17 telescopic whips, additional extensions, and all MPAS Ready mounts.

This modular approach allows operators to tailor height, efficiency, and footprint to the environment—without changing antennas.

True Resonant Operation – No Tuner Required

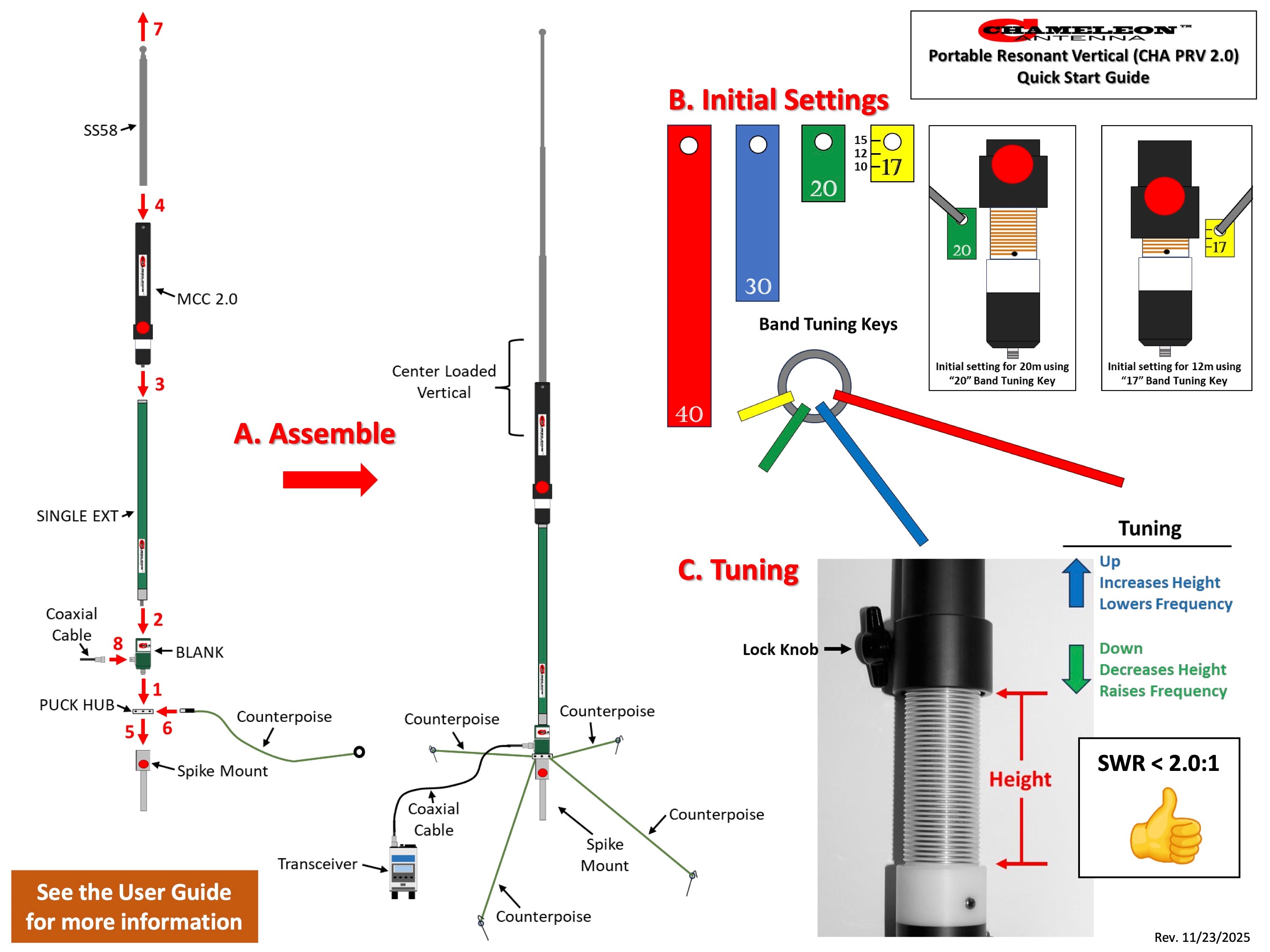

Unlike broadband compromise antennas, the CHA PRV 2.0 is a true resonant antenna. When properly adjusted, it achieves SWR < 2:1 across the entire amateur band on 40–10 meters, eliminating the need for an antenna tuner and reducing system losses. Tuning is fast and intuitive using the adjustable MCC 2.0 and included Band Keys for repeatable field setups.

Built for Real-World Portable Use

Every component of the CHA PRV 2.0 is designed for rugged outdoor operation:

• Stainless-steel telescopic whip (SS58)
• Silver plated copper loading coil
• Precision-machined aluminum components
• Integrated RF choke in the supplied coax
• Compact counterpoise system with line winders
• Compatibility with spike mounts, tripods, clamps, and camera mounts

Setup time is typically under 10 minutes, even including tuning, making it ideal for rapid activations and field deployments.

Frequency Coverage & Performance

• HF Coverage: 40m through 10m (approx. 5.7–38 MHz, configuration dependent)
• 6 Meter Coverage: 50–54 MHz (Vertical OCFD configuration)
• Power Handling:
  • 500W SSB (intermittent duty)
  • 300W CW
  • 200W digital modes

• Weight: Approx. 3 lb 11 oz
• SWR: < 2:1 at resonance
• Typical Bandwidth: Entire amateur band on 30–6m

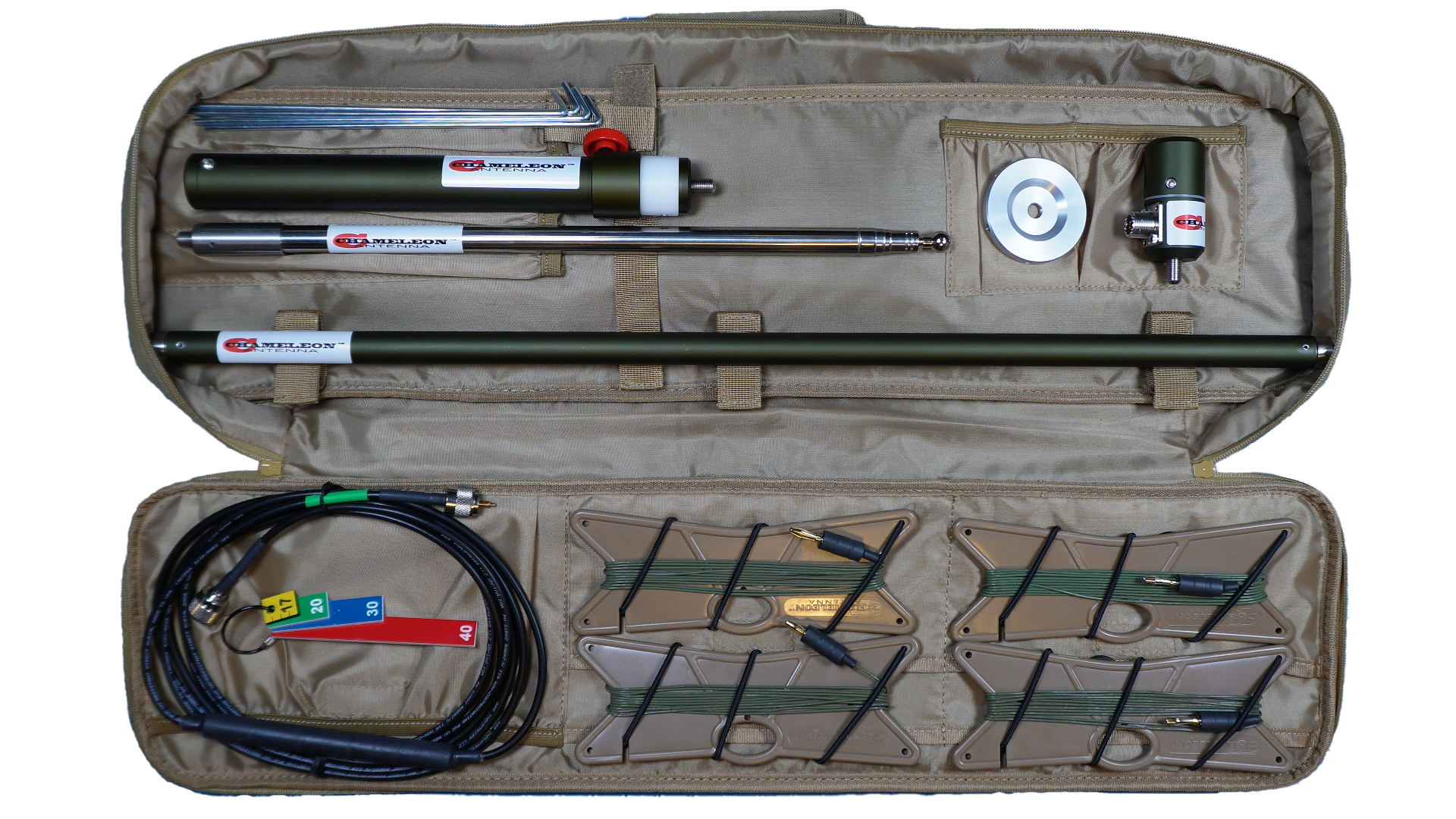

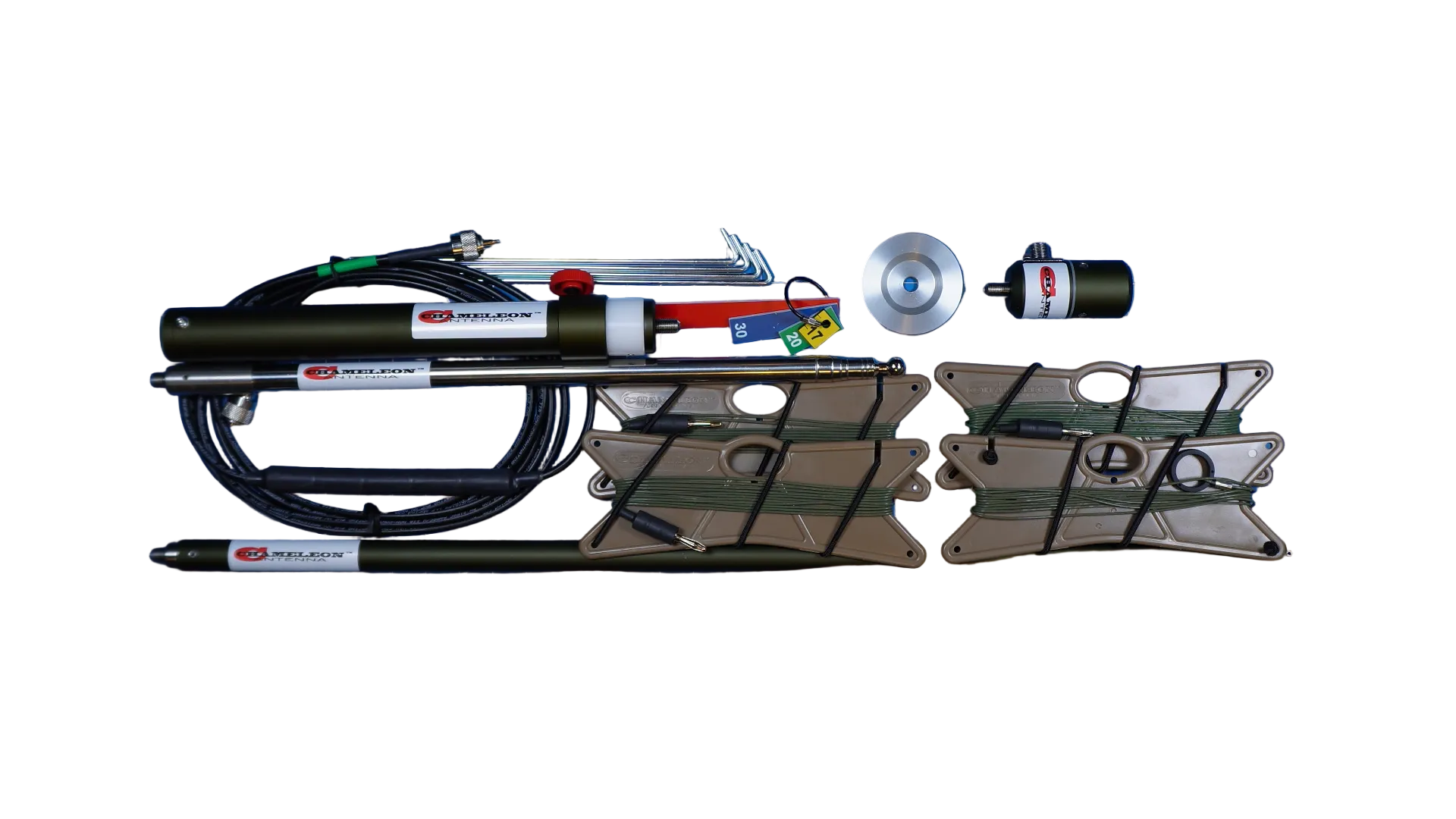

The product consist of:

1 X CHA MCC 2.0

1 X CHA SS58

1 X CHA SINGLE EXT (One section 27")

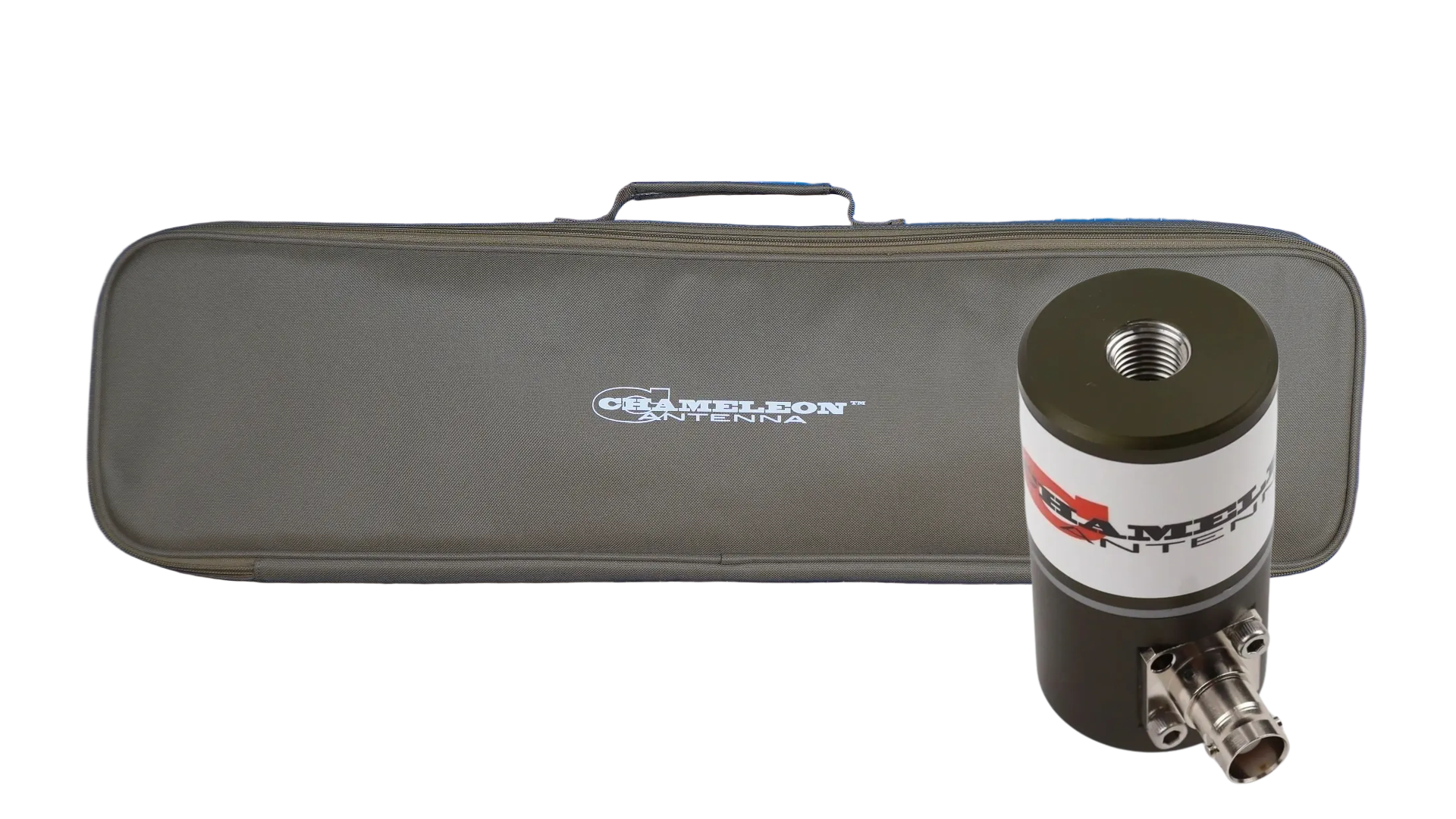

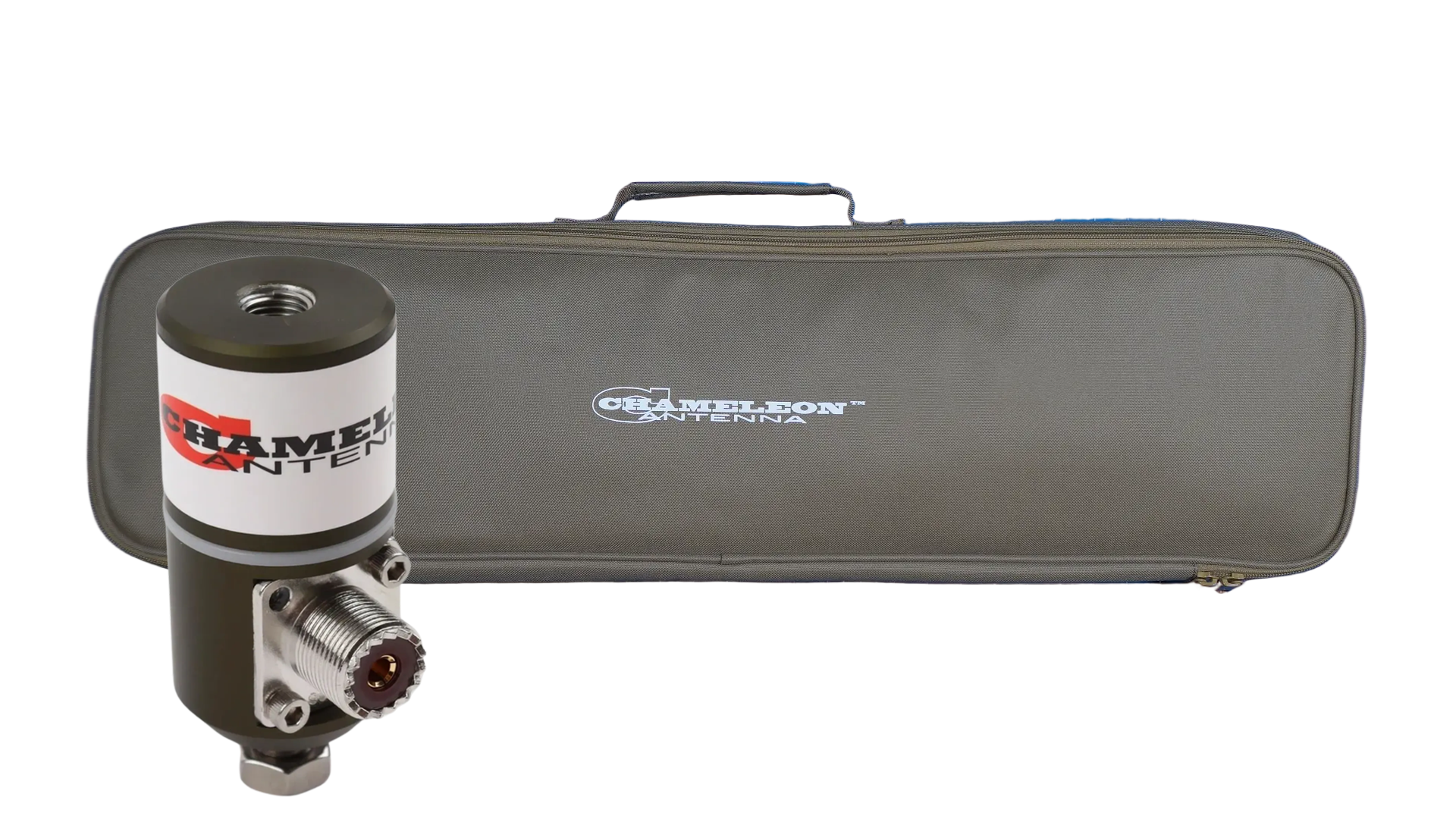

1 X CHA BLANK ADAPTER (BNC or SO-239)

1 X 12 FT. COAX WITH RFI CHOKE (BNC or PL-259)

4 X 12.5 COUNTERPOISE WIRES (GREEN)

4 X CHA WINDERS

4 X TENT STAKES

1 X CHA PUCK HUB

1 X CHA BAND KEYS

MPAS Ready – Expand as Your Mission Grows

The CHA PRV 2.0 is fully MPAS Ready, allowing seamless integration with Chameleon Antenna accessories such as spike mounts, carbon fiber tripods, jaw mounts, extender rods, rigid radial kits, and the optional Tactical Storage Bag for organized man-portable transport.

The Bottom Line

The CHA PRV 2.0 is not a compromise antenna—it is a precision resonant vertical system built for operators who want maximum performance from a truly portable platform. Whether you’re activating a summit, operating from a hotel balcony, supporting emergency communications, or traveling light without sacrificing efficiency, the PRV 2.0 delivers dependable results in environments where other antennas fail.

Chameleon Antenna™ – The Portable Antenna Pioneer.
