MORGAN SYSTEMS AC LINE FILTERS · Accessories & Components
A replacement, service, interface, or modular accessory for a documented product or system.
Why operators make room for it
MORGAN SYSTEMS AC LINE FILTERS: understand exactly where it fits in the station
MORGAN SYSTEMS AC LINE FILTERS solves a specific interface, service, or maintenance job in the station. Its value becomes clear when you can identify where it goes, what it connects to, and what remains required around it.
All are designed for flat surface mounting and may be used with or without ground terminal connection. Performance improves if local ground connection can be made and if distance from filter body to ground is kept short. Each unit is packed with a informative owner’s manual and an extra fuse. Mounting footprint is 5"x4", 2.
MORGAN SYSTEMS AC LINE FILTERS solves a specific problem in a radio station or field kit. Confirm where it goes, what it connects to or supports, and what remains required so its immediate value is clear without mistaking an accessory for a complete antenna.
Choose it when its specific job removes a real point of friction from the station, and confirm what else is required before ordering. The best next step is always a verified compatible component or documented expansion—not a random accessory that merely looks related.
Quick product reference
Key Specifications
- Product type
- Accessories & Components
- Primary role
- A replacement, service, interface, or modular accessory for a documented product or system.
- Available size
- M-476-3 120VAC/ 20A / 3 Outlets
- M-476-6 120VAC/ 20A / 6 Outlets
- M-474-3 120VAC/ 15A / 3 Outlets
- M-474-6 120VAC/ 15A / 6 Outlets
- Selection rule
- Confirm product family, revision, interface, size, and quantity
- Compatibility
- Verify electrical, power, and structural requirements where applicable
- Component role
- Replacement
- service
- interface
- or modular part for a documented product or system
- Selection checks
- Confirm product family, revision, interface, material, size, and quantity
- Included quantity
- Determined by the selected product or pack variant
Operator decision support
Plan the complete setup
See what this product is best suited for, what the documented setup needs, and the boundaries to confirm before deployment.
- Best for
The smallest missing interface, replacement part, or service component can stop an otherwise complete field station at the tailgate.
- What else you need
Confirm product family, revision, interface, size, and quantity
- Compatible with
Verify electrical, power, and structural requirements where applicable
What an operator can do
- Confirm the exact product, revision, interface, size, quantity, and position the component is intended to serve.
- Install it according to the completed product or system guide.
- Treat physical fit as only one part of compatibility; verify electrical, power, and structural requirements where applicable.
Complete product details
Most modem electronic equipment devices are subject to interference from electromagnetic signals and noise entering via AC line power cords. DVD and Video recorders, television sets, consumer audio gear and many telecommunications products are now being constructed with transformerless power supply technology, making each piece more sensitive than ever to line variations and interference. AC line filters offer an inexpensive alternative to the risk and unpleasantry of dealing with many types of line problems. Morgan Systems line filters are a complete package of inductive isolation, overvoltage control, capacitive decoupling, and interference control of both common mode and differential mode signals across a broad frequency spectrum range. Also useful for reducing noisy RFI from inverter generators when placed right at the output of the unit. Models offer 15 or 20 amp ratings and 3 or 6 outlets.

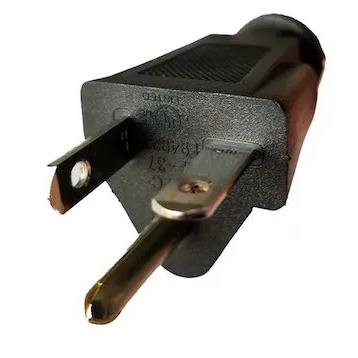

Filters are constructed in a tough, single piece heavy chassis measuring 4″ square, and each includes 6 foot molded line cord, fuse (replaced if necessary from the outside), and stainless steel ground terminal.
Design update in 2019 includes more durable outlets, increased filtering ability with up to 45dB of noise attenuation, and fast surge attack speeds with gas discharge devices.
All are designed for flat surface mounting and may be used with or without ground terminal connection. Performance improves if local ground connection can be made and if distance from filter body to ground is kept short. Each unit is packed with a informative owner’s manual and an extra fuse. Mounting footprint is 5"x4", 2.625" tall.
OPTIONS:
-

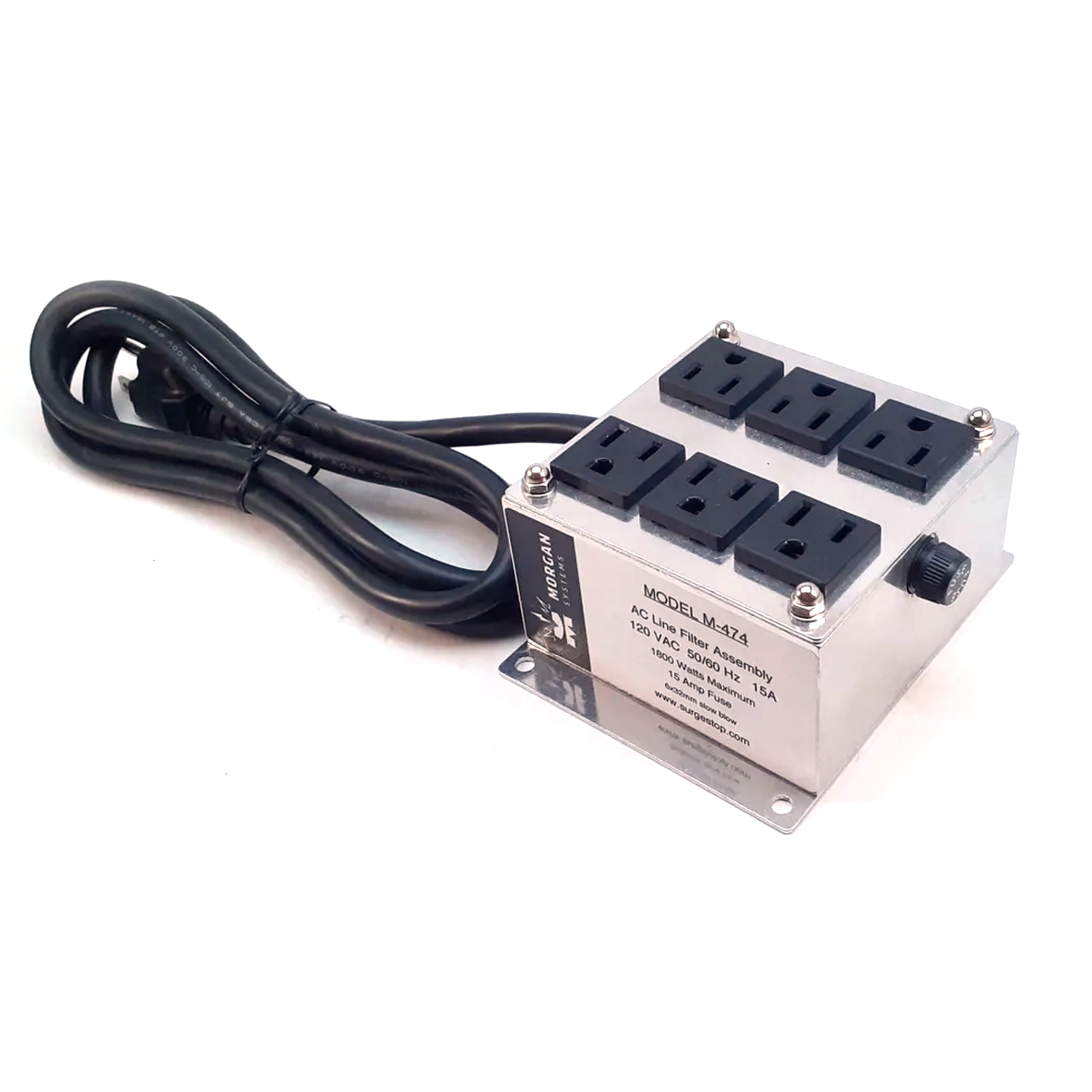

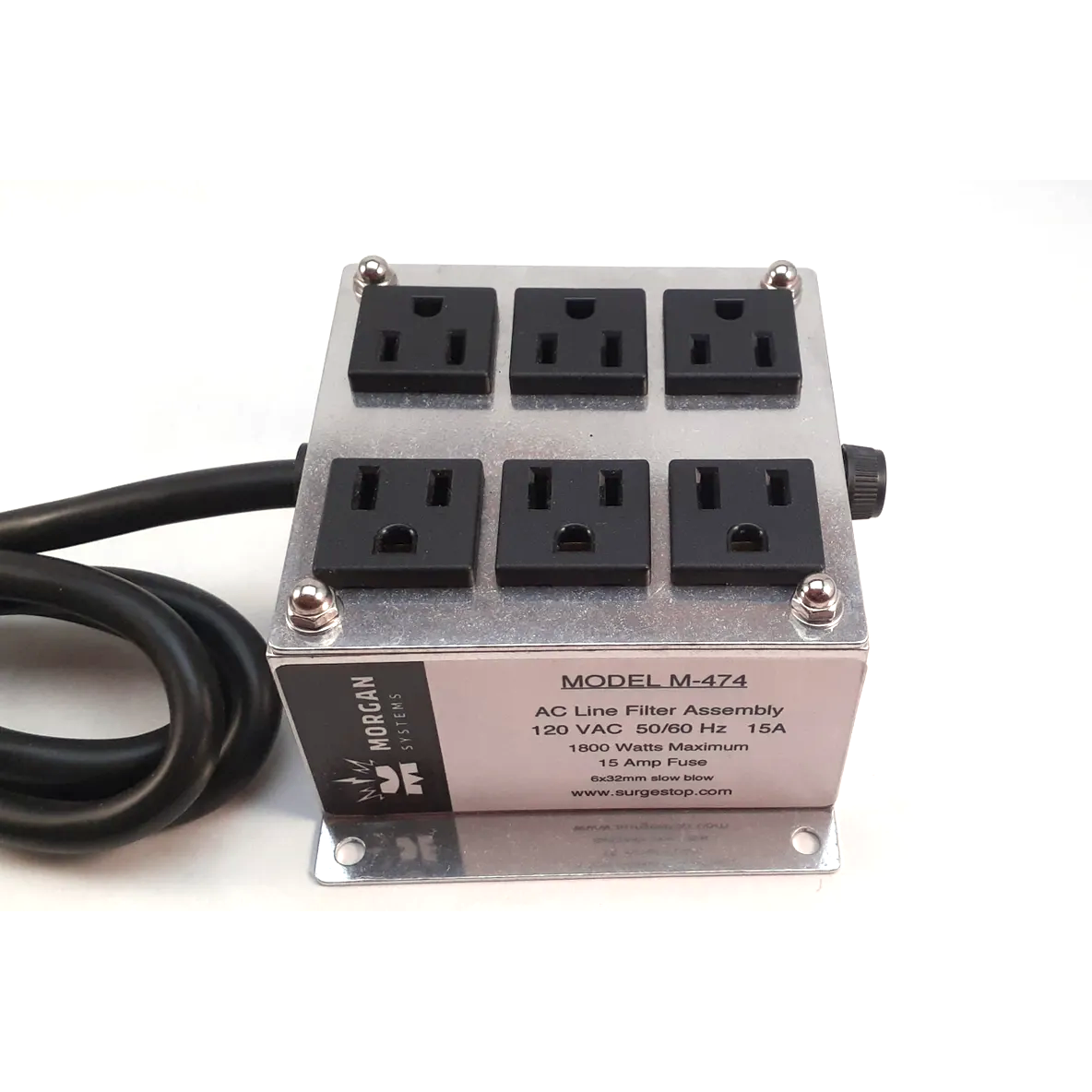

M-474-3 / M-474-6
- Power handling:120VAC, 15A
- Capacity: 3-6 power outlets
- Uses: Protection of AC powered electronics from power surges, voltage spikes, and interference control of common/differential mode signals.
-

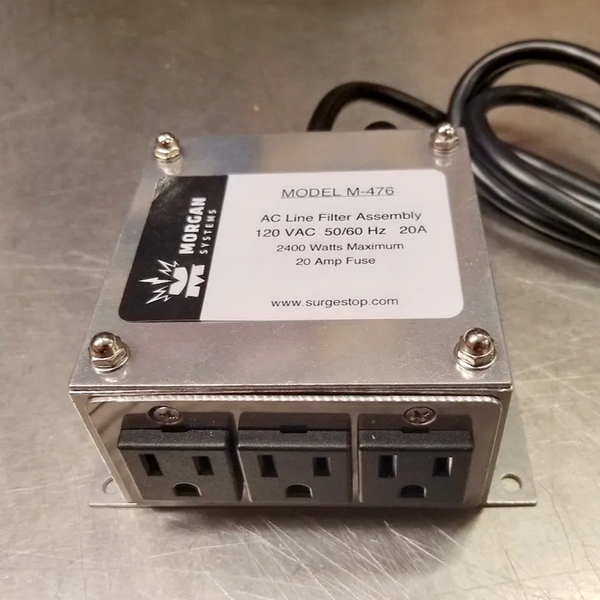

M-476-3 / M-476-6
- Power handling:120VAC, 20A
- Capacity: 3-6 power outlets
- Uses: Protection of AC powered electronics from power surges, voltage spikes, and interference control of common/differential mode signals.
