CHA LEFS FEATHER EFHW

Introducing the CHA LEFS FEATHER – Ultra-Light HF Performance, Reinvented

The CHA LEFS FEATHER (Lightweight End Fed Sloper) is a purpose-built portable HF antenna designed for operators who demand maximum performance with minimum weight.

Weighing only 3.4 oz (96 grams), this antenna is engineered for POTA, SOTA, backpacking, emergency communications, and rapid deployment where portability and reliability are critical.

What Makes the LEFS FEATHER Different

At the core of this antenna is what truly separates it from everything else in its class: the wire.

The LEFS Feather uses a custom high-quality 26 AWG PTFE Military Kevlar wire, not standard stranded copper.

This reinforced composite conductor features:

• A 26 gauge copper radiator
• An interwoven Kevlar core
• A PTFE (Teflon) outer jacket

Advantages of the 26 AWG PTFE Kevlar Wire

This wire is engineered for real-world use and delivers performance and durability that standard antenna wire cannot match:

• It does not kink, eliminating memory and permanent bends during deployment and recovery
• The Kevlar core carries the mechanical load, protecting the copper from stretching and fatigue
• Extremely lightweight while maintaining high tensile strength
• PTFE insulation provides superior resistance to heat, abrasion, and harsh environments
• Reduced long-term failure compared to standard stranded copper
• High-visibility orange for faster deployment and easier recovery

This is a military-grade wire solution, built for operators who rely on their equipment.

Multi-Band Performance

The CHA LEFS Feather is a true End Fed Half Wave antenna that provides:

Operation without a tuner on:

• 40M
• 20M
• 15M
• 10M

Operation with a tuner on:

• 30M
• 17M
• 12M

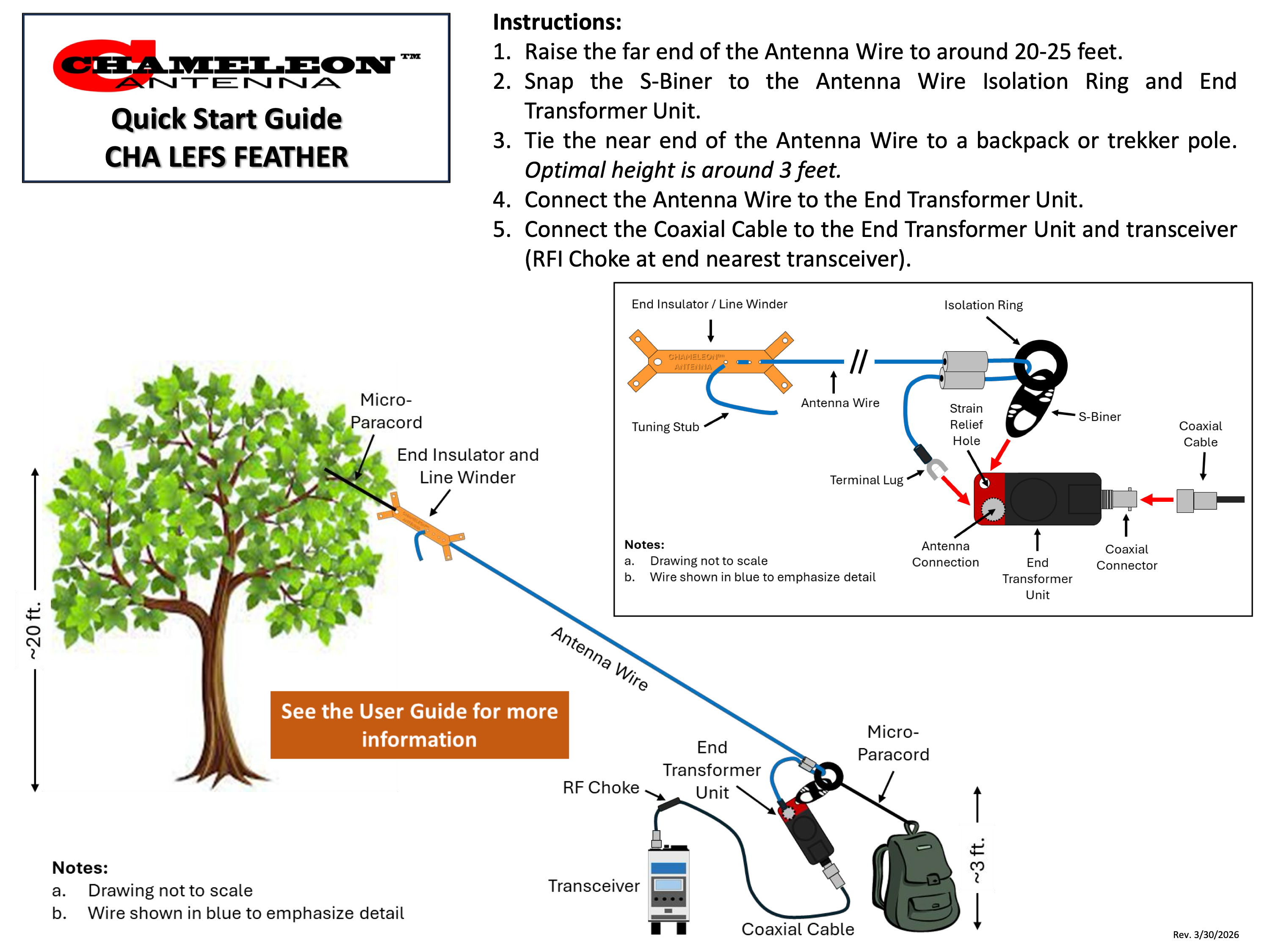

Built for Real-World Deployment

• High-performance 49:1 transformer with no compensation coil required
• Efficient sloper configuration for optimal field performance
• Single-operator setup in under 10 minutes
• Compact and highly portable for rapid deployment anywhere

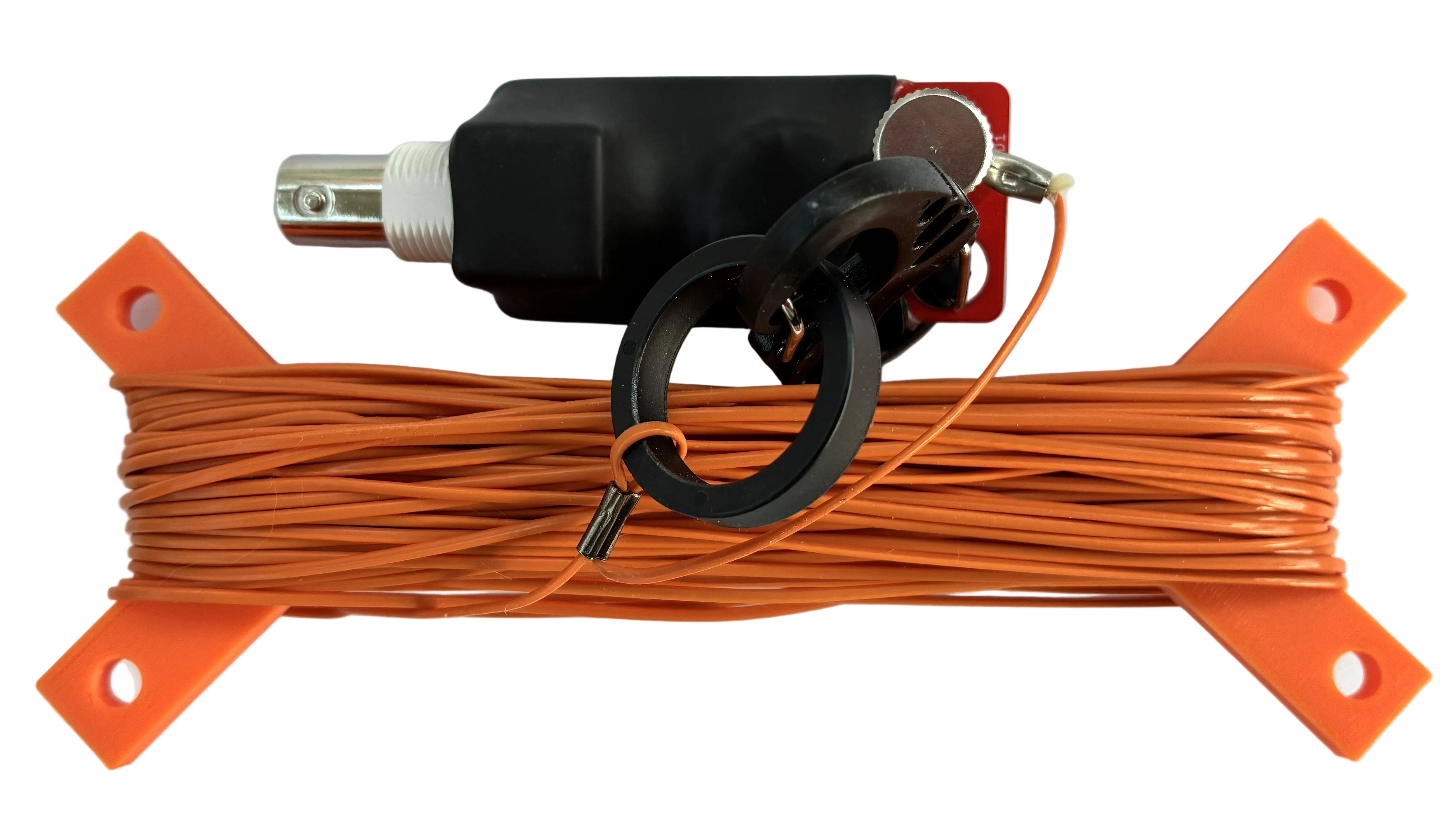

What’s Included

Each CHA LEFS FEATHER package includes:

• End Transformer PCB Unit with integrated 49:1 matching transformer and BNC connector
• Approximately ORANGE 66.5 ft of 26 AWG PTFE Kevlar-reinforced antenna wire
• Integrated End Insulator and Line Winder system

• S-Carabiner clip for quick attachment

Everything is designed as a complete, ready-to-deploy system.

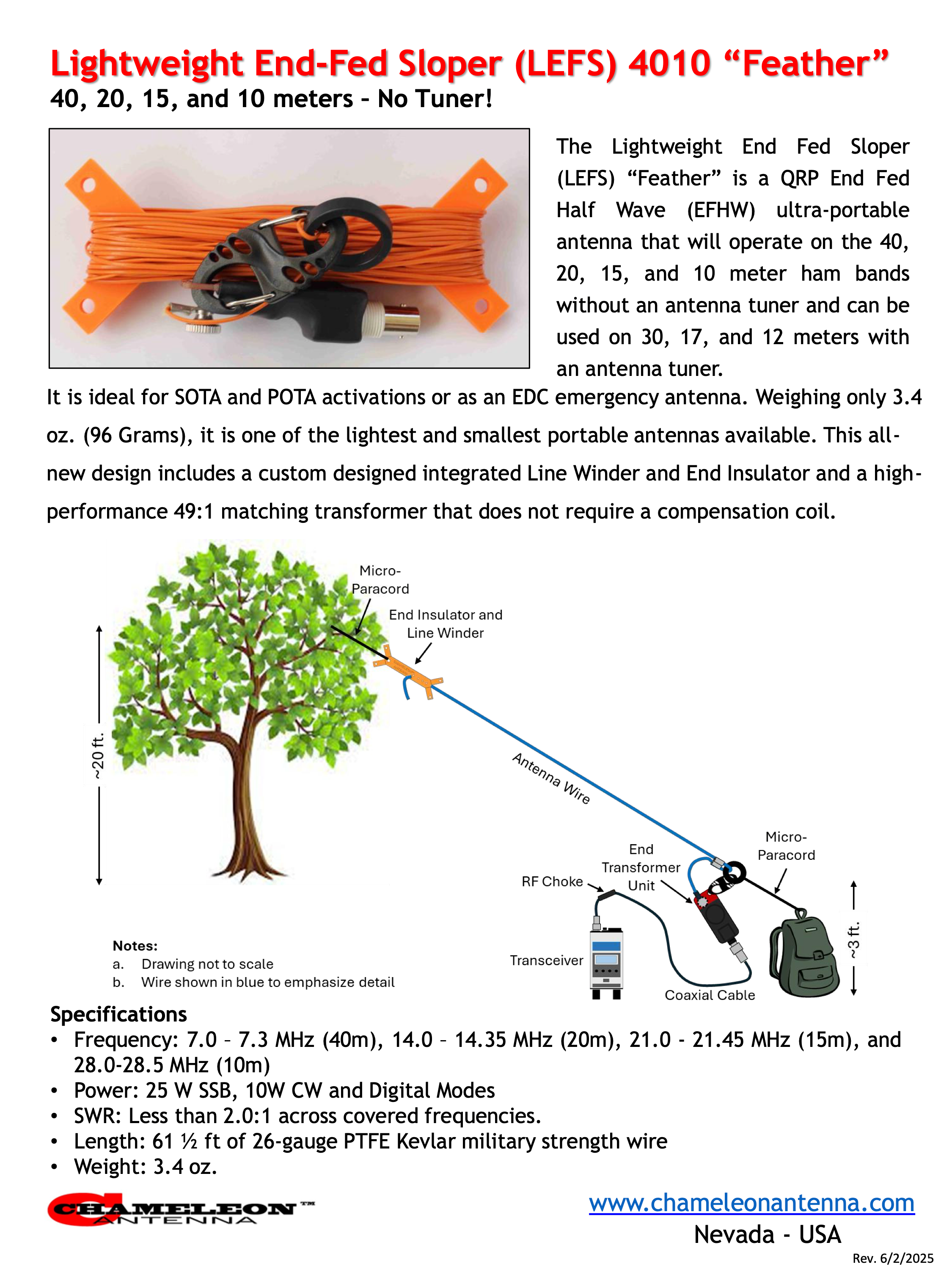

Specifications

• Frequency (no tuner):
  • 7.0 – 7.3 MHz (40M)
  • 14.0 – 14.35 MHz (20M)
  • 21.0 – 21.45 MHz (15M)
  • 28.0 – 28.5 MHz (10M)

• Frequency (with tuner):
  • 10.1 – 10.15 MHz (30M)
  • 18.068 – 18.268 MHz (17M)
  • 24.89 – 24.99 MHz (12M)
  • 28.5 – 29.7 MHz (10M FM segment)

• Power Rating:
  • 25W SSB
  • 10W CW / Digital

• RF Connection:
  • BNC Female

• SWR:
  • Less than 2.0:1 across supported bands (depending on environment and setup)

• Length:
  • Approximately 61.5 ft

• Weight:
  • 3.4 oz (96 grams)

• Wire Type:
  • 26 AWG PTFE Military Kevlar reinforced wire

• Setup Time:
  • One operator, less than 10 minutes

Designed for Operators Who Move

Whether you are activating a summit, operating in a national park, preparing for emergency communications, or working within HOA restrictions, the LEFS Feather provides a full-size HF solution in an ultra-compact form factor.

The Bottom Line

The CHA LEFS FEATHER delivers:

• Advanced wire technology
• Reliable multi-band HF performance
• Fast and simple deployment
• True portability without compromise

This is not just a lightweight antenna. It is a serious HF tool built for real-world operators.

Versatile. Dependable. Stealth. Built to Last.
